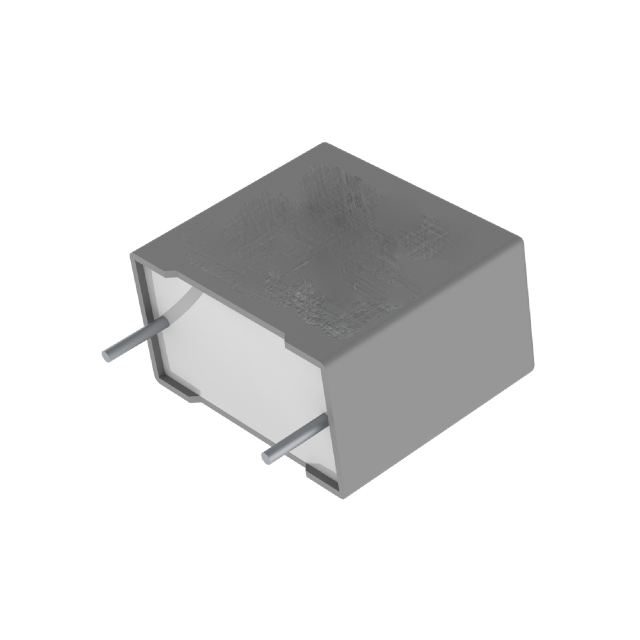

R413R322050T0K

Active

KEMET

SUPPRESSION CAP, AEC-Q200, 0.22UF, Y2 ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsR413R322050T0K Spec KEM_F3120_R41-T_Y2_300.pdf +3

R413R322050T0K

Active

KEMET

SUPPRESSION CAP, AEC-Q200, 0.22UF, Y2 ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsR413R322050T0K Spec KEM_F3120_R41-T_Y2_300.pdf +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R413R322050T0K

Applications	EMI, RFI Suppression, Automotive
Capacitance	0.22 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max] [z]	0.87 in
Height - Seated (Max) [Max] [z]	22.1 mm
Lead Spacing	27.5 mm
Lead Spacing	1.083 in
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial
Ratings	Y2, AEC-Q200, X1
Size / Dimension [x]	32 mm
Size / Dimension [x]	1.26 in
Size / Dimension [y]	13 mm
Size / Dimension [y]	0.512 in
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	300 V
Voltage Rating - DC	1.5 kVDC
Voltage Rating - DC	1.5 kV

R413R Series

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Capacitance	Termination	Dielectric Material	Voltage Rating - DC	Voltage Rating - DC	Voltage Rating - AC	Applications	Tolerance	Package / Case	Lead Spacing	Lead Spacing	Mounting Type	Ratings	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]
KEMET R413R32204000M	32 mm	13 mm	1.26 in	0.512 in	0.22 µF	PC Pins	Metallized Polypropylene (PP)	1 kVDC	1 kV	300 V	Automotive EMI RFI Suppression	20 %	Radial	27.5 mm	1.083 in	Through Hole	AEC-Q200 X1 Y2	0.87 in	22.1 mm	-40 °C	110 °C
KEMET R413R34705000M	32 mm		1.26 in	0.709 "	0.47 µF	PC Pins	Metallized Polypropylene (PP)	1 kVDC	1 kV	300 V	Automotive EMI RFI Suppression	20 %	Radial	27.5 mm	1.083 in	Through Hole	AEC-Q200 X1 Y2			-40 °C	110 °C	18 mm
KEMET R413R34704000M	32 mm		1.26 in	0.709 "	0.47 µF	PC Pins	Metallized Polypropylene (PP)	1 kVDC	1 kV	300 V	Automotive EMI RFI Suppression	20 %	Radial	27.5 mm	1.083 in	Through Hole	AEC-Q200 X1 Y2			-40 °C	110 °C	18 mm
KEMET R413R34700000M	32 mm		1.26 in	0.709 "	0.47 µF	PC Pins	Metallized Polypropylene (PP)	1 kVDC	1 kV	300 V	Automotive EMI RFI Suppression	20 %	Radial	27.5 mm	1.083 in	Through Hole	AEC-Q200 X1 Y2			-40 °C	110 °C	18 mm
KEMET R413R368050T0K	32 mm		1.26 in	0.709 "	680 nF	PC Pins	Metallized Polypropylene (PP)	1.5 kVDC	1.5 kV	300 V	Automotive EMI RFI Suppression	10 %	Radial	27.5 mm	1.083 in	Through Hole	AEC-Q200 X1 Y2			-40 °C	125 °C	18 mm
KEMET R413R347050T0K	32 mm		1.26 in	0.709 "	0.47 µF	PC Pins	Metallized Polypropylene (PP)	1.5 kVDC	1.5 kV	300 V	Automotive EMI RFI Suppression	10 %	Radial	27.5 mm	1.083 in	Through Hole	AEC-Q200 X1 Y2			-40 °C	125 °C	18 mm
KEMET R413R322050T0K	32 mm	13 mm	1.26 in	0.512 in	0.22 µF	PC Pins	Metallized Polypropylene (PP)	1.5 kVDC	1.5 kV	300 V	Automotive EMI RFI Suppression	10 %	Radial	27.5 mm	1.083 in	Through Hole	AEC-Q200 X1 Y2	0.87 in	22.1 mm	-40 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.24
		10	$ 1.72
		288	$ 1.19
		1152	$ 0.92
		5184	$ 0.86
		10080	$ 0.84
LCSC	Piece	1	$ 0.63
		288	$ 0.25
		576	$ 0.24
		864	$ 0.23
Newark	Each	1	$ 2.56
		10	$ 2.01
		25	$ 1.82
		50	$ 1.62
		100	$ 1.35
		500	$ 1.31
		1000	$ 1.26
		2500	$ 1.14

Description

General part information

R413R Series

0.22 µF Film Capacitor 300V 1500V (1.5kV) Polypropylene (PP), Metallized Radial

Documents

Technical documentation and resources

R413R322050T0K

Deep-Dive with AI

R413R322050T0K

Deep-Dive with AI

Technical Specifications

R413R Series

Pricing

Description

R413R Series

Documents

R413R322050T0K Spec

KEM_F3120_R41-T_Y2_300.pdf

Datasheet

Manufacturer Catalogue EN

Product Change Notice EN

R413R Series
