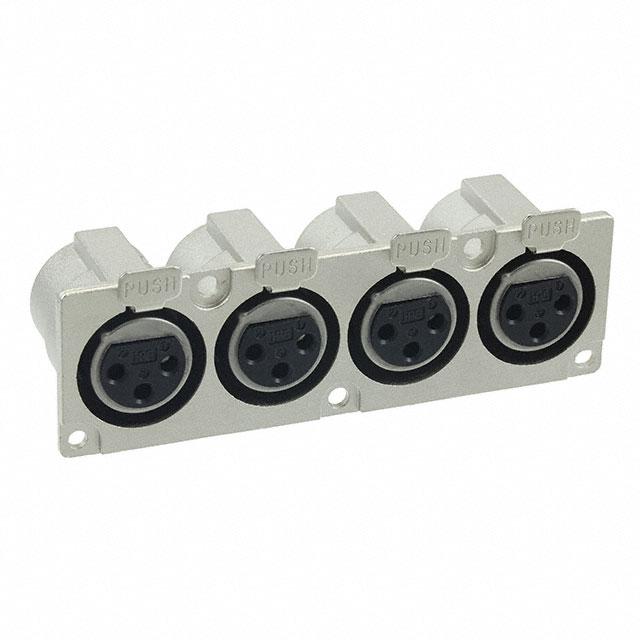

HA16PRN-3SF-A(71)

Obsolete

Hirose Electric USA, Inc.

CONN 3 X 4 POS SILVER SOLDER CUP

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN 3 X 4 POS SILVER SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	HA16PRN-3SF-A(71)

Color	Silver
Connector Type	Female Sockets (Ganged), Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	15 A
Fastening Type	Latch Lock
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Number of Positions [x]	3
Number of Positions [y]	4
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum or Zinc Alloy
Shell Size - Insert	16
Shielding	Shielded
Voltage Rating	130 VAC, 180 VDC

Part	Voltage Rating	Fastening Type	Connector Type	Mounting Feature	Number of Positions [y]	Number of Positions [x]	Shielding	Color	Orientation	Shell Finish	Material Flammability Rating	Current Rating (Amps)	Shell Material	Shell Size - Insert	Mounting Type	Contact Material	Primary Material	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating
Hirose Electric USA, Inc. HA16PRN-3SE-A(71)	130 VAC 180 VDC	Latch Lock	Female Sockets (Ganged) Plug	Flange	4	3	Shielded	Silver	Keyed	Nickel	UL94 V-0	3 A	Aluminum or Zinc Alloy	16	Panel Mount Through Hole	Copper Alloy	Metal	Solder	70 °C	-25 °C	Silver
Hirose Electric USA, Inc. HA16PRN-3SF-A(71)	130 VAC 180 VDC	Latch Lock	Female Sockets (Ganged) Plug	Flange	4	3	Shielded	Silver	Keyed	Nickel	UL94 V-0	15 A	Aluminum or Zinc Alloy	16		Copper Alloy	Metal		70 °C	-25 °C	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

3 x 4 Position Circular Connector Plug, Female Sockets (Ganged) Solder Cup
