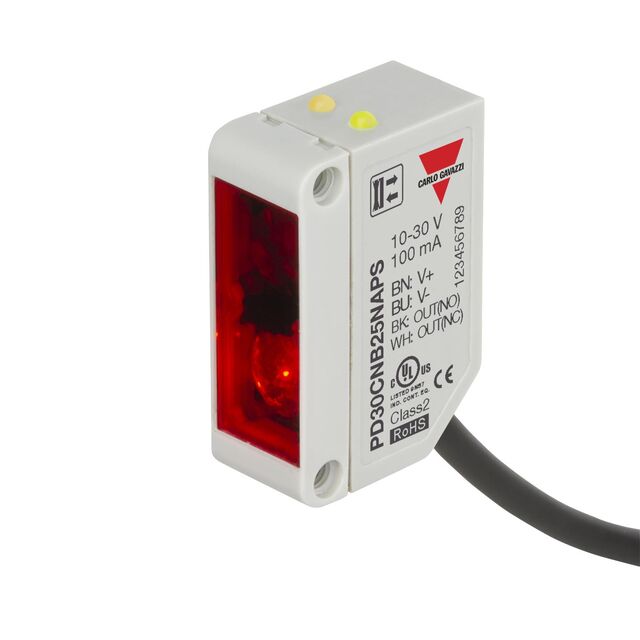

PD30CNB25NAPS

Active

CARLO GAVAZZI

SENSOR: PHOTOELECTRIC; RANGE: 250MM; PNP / NO + NC; USUP: 10÷30VDC

Search across all available documentation for this part.

Active

CARLO GAVAZZI

SENSOR: PHOTOELECTRIC; RANGE: 250MM; PNP / NO + NC; USUP: 10÷30VDC

Technical Specifications

Parameters and characteristics for this part

Specification	PD30CNB25NAPS

Adjustment Type	Adjustable, 1-Turn Potentiometer
Cable Length	78.74 in
Cable Length	2 m
Connection Method	Cable
Ingress Protection	IP67
Light Source	Infrared
Light Source	621 nm
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Output Configuration	NPN
Response Time	1 ms
Sensing Method	Reflective
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Cable Length	Cable Length	Sensing Method	Output Configuration	Response Time	Connection Method	Adjustment Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Light Source	Light Source
CARLO GAVAZZI PD30CNB25NAPS	IP67	60 °C	-25 °C	78.74 in	2 m	Reflective	NPN	1 ms	Cable	Adjustable 1-Turn Potentiometer	30 VDC	10 VDC	Infrared	621 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Reflective Optical Sensor 9.843" (250mm) NPN
