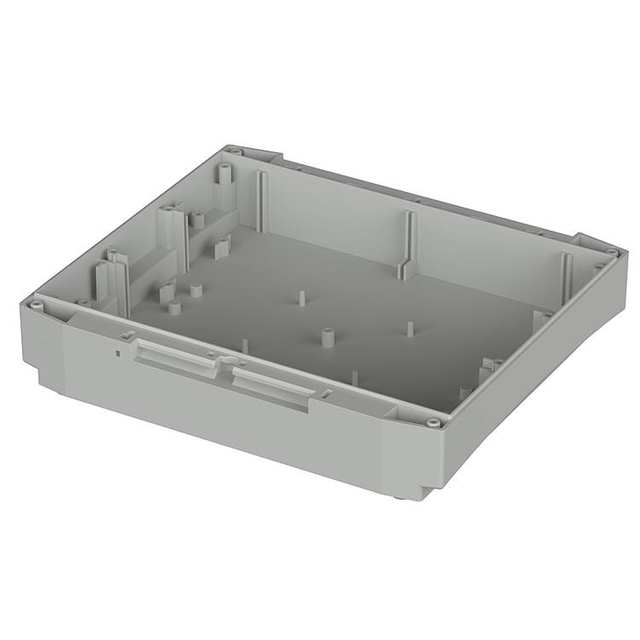

BCD 200 UT-0.5-7035

Active

Bopla Enclosures

BOX ABS GRAY 8.86"L X 7.8"W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BCD 200 UT-0.5-7035

Active

Bopla Enclosures

BOX ABS GRAY 8.86"L X 7.8"W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BCD 200 UT-0.5-7035

Area (L x W)	69 in²
Area (L x W)	445 cm²
Color	Gray
Container Type	Box
Design	Open End(s)
Features	PCB Supports, Card Guides
Height [z]	1.575 in
Height [z]	40 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Size / Dimension [x]	8.858 in
Size / Dimension [x]	225 mm
Size / Dimension [y]	7.795 in
Size / Dimension [y]	198 mm
Thickness	3 mm
Thickness	0.118 in

BCD 200 Series

Part	For Use With/Related Products	Color	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Type	Material	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Material Flammability Rating	Height [z]	Height [z]	Area (L x W)	Area (L x W)	Thickness	Thickness	Design	Container Type
Bopla Enclosures BCD 200 KRD-7035	BOCARD 200 System	Gray	8.583 in	2.126 in	218 mm	0.787 in	54 mm	20 mm	Cover Lid	Plastic Polycarbonate
Bopla Enclosures BCD 200 OT-F-7035	BOCARD 200 System	Gray	9.016 in	7.992 in	229 mm	0.748 "	203 mm	19 mm	Cover Lid	Plastic Polycarbonate
Bopla Enclosures BCD 200 OT-G-7035	BOCARD 200 System	Clear Gray Frame			9.016 "		8.031 "	1.407 "	Cover Lid	Plastic Polycarbonate	Hinged	229 mm	204 mm	36 mm
Bopla Enclosures BCD 200 OT-F-7024	BOCARD 200 System	Gray	9.016 in	7.992 in	229 mm	0.748 "	203 mm	19 mm	Cover Lid	Plastic Polycarbonate
Bopla Enclosures BCD 200 OT-G-7024	BOCARD 200 System	Clear Gray Frame			9.016 "		8.031 "	1.407 "	Cover Lid	Plastic Polycarbonate	Hinged	229 mm	204 mm	36 mm
Bopla Enclosures BCD 200 FO-7035	BOCARD 200 System	Gray	9.016 in	7.992 in	229 mm	0.748 "	203 mm	19 mm	Frame	Plastic Polycarbonate
Bopla Enclosures BCD 200 FO-K-7024	BOCARD 200 System	Gray	9.016 in	7.992 in	229 mm	0.748 "	203 mm	19 mm	Frame	Plastic Polycarbonate
Bopla Enclosures BCD 200 FO-7024	BOCARD 200 System	Gray	9.016 in	7.992 in	229 mm	0.748 "	203 mm	19 mm	Frame	Plastic Polycarbonate
Bopla Enclosures BCD 200 KRD-7024	BOCARD 200 System	Gray	8.583 in	2.126 in	218 mm	0.787 in	54 mm	20 mm	Cover Lid	Plastic Polycarbonate
Bopla Enclosures BCD 200 UT-0.5-7035		Gray	8.858 in	7.795 in	225 mm		198 mm			Plastic ABS	Card Guides PCB Supports				UL94 HB	1.575 in	40 mm	69 in²	445 cm²	3 mm	0.118 in	Open End(s)	Box

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 29.14

Description

General part information

BCD 200 Series

Box Plastic, ABS Gray Open End(s) 8.858" L x 7.795" W (225.00mm x 198.00mm) X 1.575" (40.00mm)
