TW-32-09-L-D-294-SM-P

Active

Samtec Inc.

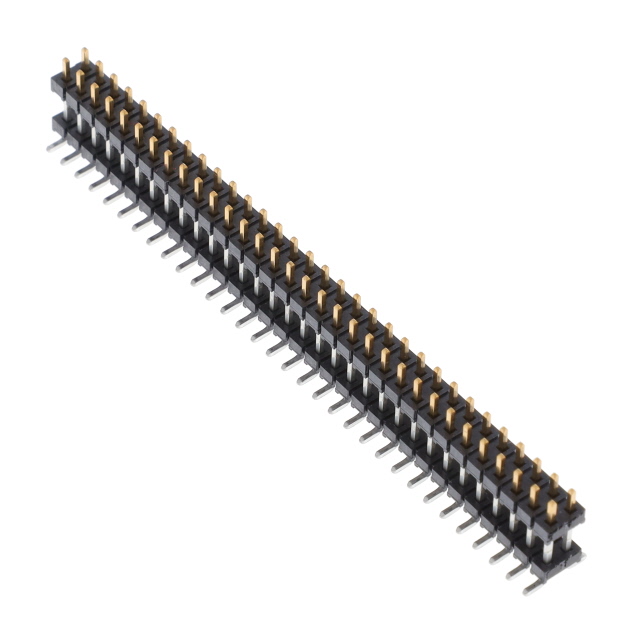

CONN HDR 64POS 0.079 STACK SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTW Datasheet TW Series Datasheet 03 +2

TW-32-09-L-D-294-SM-P

Active

Samtec Inc.

CONN HDR 64POS 0.079 STACK SMD

Deep-Dive with AI

DocumentsTW Datasheet TW Series Datasheet 03 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TW-32-09-L-D-294-SM-P

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin	0.388 in
Length - Overall Pin	9.855 mm
Length - Post (Mating) [x]	0.094 in
Length - Post (Mating) [x]	2.388 mm
Length - Stack Height [z]	7.468 mm
Length - Stack Height [z]	0.294 in
Mounting Type	Surface Mount
Number of Positions	64
Number of Rows	2
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in
Termination	Solder

TW-32-09 Series

Part	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Tail [x]	Length - Tail [x]	Mounting Type	Color	Contact Finish - Post (Mating)	Number of Rows	Length - Overall Pin [x]	Length - Overall Pin [x]	Number of Positions	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Termination	Length - Stack Height [x]	Length - Stack Height [x]	Pitch [x]	Pitch [x]	Row Spacing	Row Spacing	Length - Stack Height [custom]	Length - Stack Height [custom]	Length - Overall Pin	Length - Overall Pin	Length - Stack Height [z]	Length - Stack Height [z]
Samtec Inc. TW-32-09-L-D-235-120	0.101 in	2.565 mm	0.12 in	3.048 mm	Through Hole	Black	Gold	2	11.582 mm	0.456 in	64	0.25 Ám	10 Áin	Solder	0.235 in	5.969 mm	0.079 in	2 mm	2 mm	0.079 in
Samtec Inc. TW-32-09-G-D-120-110	0.226 in	5.74 mm	0.11 in	2.794 mm	Through Hole	Black	Gold	2	11.582 mm	0.456 in	64	0.51 Ám	20 Áin	Solder	0.12 in	3.048 mm	0.079 in	2 mm	2 mm	0.079 in
Samtec Inc. TW-32-09-S-D-160-100	0.196 in	4.978 mm	0.1 "	2.54 mm	Through Hole	Black	Gold	2	11.582 mm	0.456 in	64	0.76 µm	30 µin	Solder			0.079 in	2 mm	2 mm	0.079 in	4.064 mm	0.16 in
Samtec Inc. TW-32-09-G-D-185-135	0.136 in	3.454 mm	0.135 in	3.429 mm	Through Hole	Black	Gold	2	11.582 mm	0.456 in	64	0.51 Ám	20 Áin	Solder	0.185 in	4.699 mm	0.079 in	2 mm	2 mm	0.079 in
Samtec Inc. TW-32-09-L-D-294-SM-P	0.094 in	2.388 mm			Surface Mount	Black	Gold	2			64	0.25 Ám	10 Áin	Solder			0.079 in	2 mm	2 mm	0.079 in			0.388 in	9.855 mm	7.468 mm	0.294 in
Samtec Inc. TW-32-09-S-D-160-120	0.176 in	4.47 mm	0.12 in	3.048 mm	Through Hole	Black	Gold	2	11.582 mm	0.456 in	64	0.76 µm	30 µin	Solder			0.079 in	2 mm	2 mm	0.079 in	4.064 mm	0.16 in
Samtec Inc. TW-32-09-L-D-150-100			0.1 "	2.54 mm	Through Hole	Black	Gold	2	11.582 mm	0.456 in	64	0.25 Ám	10 Áin	Solder			0.079 in	2 mm	2 mm	0.079 in					3.81 mm	0.15 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 11.41
		10	$ 10.55
		25	$ 9.97
		50	$ 9.61
		100	$ 8.99

Description

General part information

TW-32-09 Series

64 Position Header Spacer Connector 0.079" (2.00mm) Gold Surface Mount
