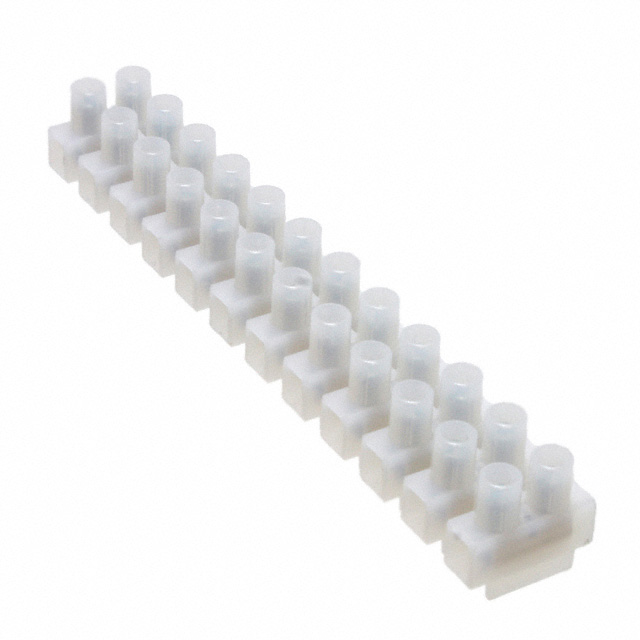

0391001212

Obsolete

Molex

CONN TERM STRIP 12CIRC 0.472"

Deep-Dive with AI

Search across all available documentation for this part.

0391001212

Obsolete

Molex

CONN TERM STRIP 12CIRC 0.472"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0391001212

Barrier Type	Enclosed
Bottom Termination	Closed
Color	Clear
Current Rating (Amps)	40 A
Material - Insulation	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Panel, Chassis
Number of Circuits	12
Number of Rows	2
Operating Temperature	212 °F
Pitch [x]	12 mm
Pitch [x]	0.472 in
Terminal Block Type	Eurostyle Terminal Strip
Terminal Screw Finish	Zinc
Terminal Screw Material	Steel
Top Termination	Screws
Voltage Rating	600 V
Wire Gauge [Max]	20 AWG
Wire Gauge [Min]	8 AWG

039100 Series

...

Part	Material Flammability Rating	Number of Wire Entries	Barrier Type	Top Termination	Terminal Block Type	Current Rating (Amps)	Terminal Screw Finish	Number of Circuits	Number of Rows	Bottom Termination	Terminal Screw Material	Color	Operating Temperature	Wire Gauge [Min]	Wire Gauge [Max]	Voltage Rating	Material - Insulation	Pitch [x]	Pitch [x]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Wire Entries [custom]
Molex 0391001502	UL94 V-2	4	Enclosed	Screws	Eurostyle Terminal Strip	63 A	Zinc	2	2	Closed	Steel	Clear	212 °F	6 AWG	14 AWG	600 V	Polyamide (PA66) Nylon 6/6	0.591 in	15 mm	Chassis Panel
Molex 0391001212	UL94 V-2		Enclosed	Screws	Eurostyle Terminal Strip	40 A	Zinc	12	2	Closed	Steel	Clear	212 °F	8 AWG	20 AWG	600 V	Polyamide (PA66) Nylon 6/6	0.472 in	12 mm	Chassis Panel
Molex 0391001505	UL94 V-2	10	Enclosed	Screws	Eurostyle Terminal Strip	63 A	Zinc	5	2	Closed	Steel	Clear	212 °F	6 AWG	14 AWG	600 V	Polyamide (PA66) Nylon 6/6	0.591 in	15 mm	Chassis Panel
Molex 0391000903	UL94 V-2	6	Enclosed	Screws	Eurostyle Terminal Strip	20 A	Zinc	3	2	Closed	Steel	Clear	212 °F	12 AWG	22 AWG	300 VDC	Polyamide (PA66) Nylon 6/6			Chassis Panel
Molex 0391002212	UL94 V-0		Enclosed	Screws	Eurostyle Terminal Strip	40 A	Zinc	12	2	Closed	Steel	White		8 AWG	20 AWG	600 V	Polyamide (PA66) Nylon 6/6	0.472 in	12 mm	Chassis Panel	-40 °C	105 ░C
Molex 0391002302	UL94 V-0	4	Enclosed	Screws	Eurostyle Terminal Strip	40 A	Zinc	2	2	Closed	Steel	White		8 AWG	20 AWG	300 VDC	Polyamide (PA66) Nylon 6/6	0.472 in	12 mm	Chassis Panel	-40 °C	105 ░C
Molex 0391002005	UL94 V-0	10	Enclosed	Screws	Eurostyle Terminal Strip	30 A	Zinc	5	2	Closed	Steel	White		10 AWG	18 AWG	600 V	Polyamide (PA6) Nylon 6	0.394 in	10 mm	Chassis Panel	-40 °C	105 ░C
Molex 0391000911	UL94 V-2		Enclosed	Screws	Eurostyle Terminal Strip	20 A	Zinc	11	2	Closed	Steel	Clear	212 °F	12 AWG	22 AWG	300 VDC	Polyamide (PA66) Nylon 6/6			Chassis Panel			22
Molex 0391002502	UL94 V-0	4	Enclosed	Screws	Eurostyle Terminal Strip	63 A	Zinc	2	2	Closed	Steel	White		6 AWG	14 AWG	600 V	Polyamide (PA66) Nylon 6/6	0.591 in	15 mm	Chassis Panel	-40 °C	105 ░C
Molex 0391000905	UL94 V-2	10	Enclosed	Screws	Eurostyle Terminal Strip	20 A	Zinc	5	2	Closed	Steel	Clear	212 °F	12 AWG	22 AWG	300 VDC	Polyamide (PA66) Nylon 6/6			Chassis Panel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

039100 Series

12 Circuit 0.472" (12.00mm) Eurostyle Terminal Strip Connector Screws
