T0054462599N

Active

Apex Tool Group

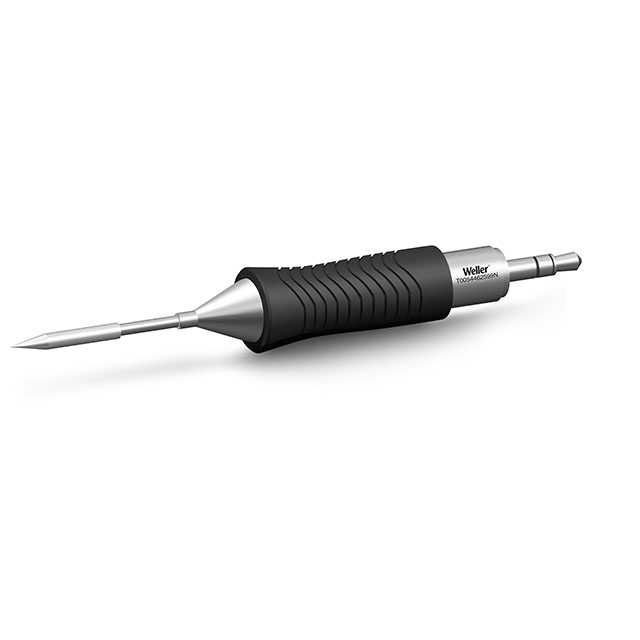

RT 1NW SOLD. TIP NEEDLE 0.1MM CH

Search across all available documentation for this part.

Active

Apex Tool Group

RT 1NW SOLD. TIP NEEDLE 0.1MM CH

Technical Specifications

Parameters and characteristics for this part

Specification	T0054462599N

Diameter [diameter]	0.1 mm
Diameter [diameter]	0.004 in
For Use With/Related Products	WMRP-MS, WMRP
Tip Shape	Conical
Tip Type	Soldering

Part	Diameter [diameter]	Diameter [diameter]	For Use With/Related Products	Tip Shape	Tip Type	Height [z]	Height [z]	Length [x]	Length [x]	Width	Width [x]	Width [x]	Length	Length
Apex Tool Group T0054462699N	0.3 mm	0.012 "	WMRP WMRP-MS	Chisel	Soldering	0.1 mm	0.004 in
Apex Tool Group T0054462399N				Chisel	Soldering			0.945 in	24 mm	0.79 mm	0.031 "
Apex Tool Group T0054462299N				Chisel	Soldering						0.087 in	2.2 mm	0.748 in	19 mm
Apex Tool Group T0054462671N			WXMP WXMP MS	Chisel	Soldering			0.787 "	20 mm		0.012 in	0.31 mm
Apex Tool Group T0054462599N	0.1 mm	0.004 in	WMRP WMRP-MS	Conical	Soldering
Apex Tool Group T0054462971N
Apex Tool Group T0054462571N	0.1 mm	0.004 in	WMRP WMRP-MS	Conical	Soldering

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.00

General part information

RT 1NW SOLD. TIP NEEDLE 0.1MM CH
