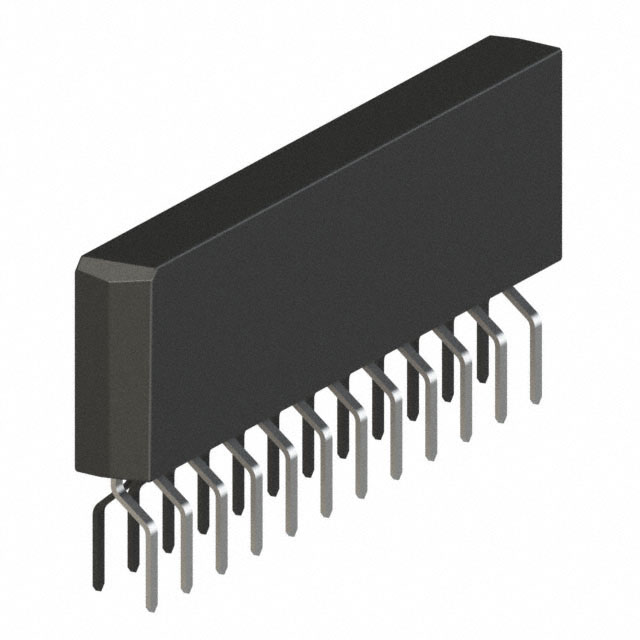

QS74FCT2543CTZ

Obsolete

Quality Semiconductor

IC BUS DRIVER/TXRX 5V

Search across all available documentation for this part.

Obsolete

Quality Semiconductor

IC BUS DRIVER/TXRX 5V

Technical Specifications

Parameters and characteristics for this part

Specification	QS74FCT2543CTZ

Current - Output High, Low [custom]	-
Current - Output High, Low [custom]	64 mA
Logic Type	Bus Driver, Transceiver
Mounting Type	Through Hole
Number of Bits per Element	8
Number of Elements	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Output Type	3-State

Part	Mounting Type	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Number of Bits per Element	Operating Temperature [Max]	Operating Temperature [Min]	Number of Elements	Logic Type	Output Type
Quality Semiconductor QS74FCT2543TSO
Quality Semiconductor QS74FCT2543CTZ	Through Hole	-	64 mA	8	70 °C	0 °C	1	Bus Driver Transceiver	3-State
Quality Semiconductor QS74FCT2543TS0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	33	$ 9.18

General part information

Bus Driver, Transceiver 1 Element 8 Bit per Element 3-State Output

Technical documentation and resources

No documents available
