G12JHC

Active

NKK Switches

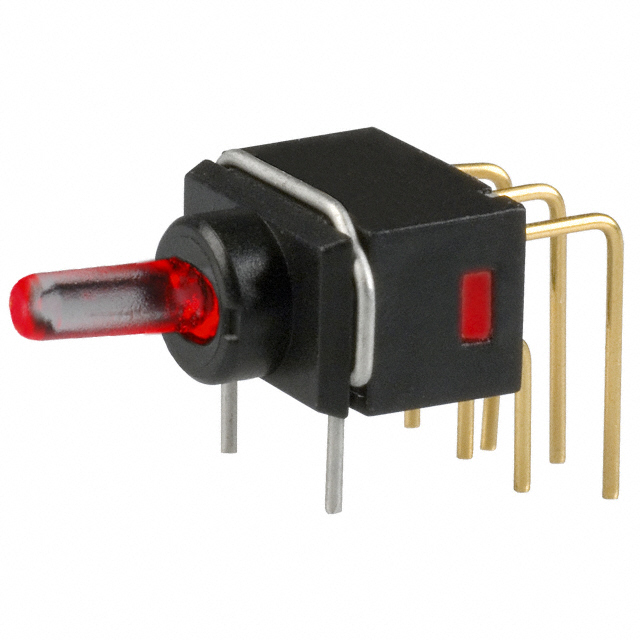

SWITCH TOGGLE ON NONE ON SPDT LIGHTED LEVER PC PINS 0.1A 28VAC 28VDC 0.4VA PC MOUNT WITH BRACKET

Search across all available documentation for this part.

Active

NKK Switches

SWITCH TOGGLE ON NONE ON SPDT LIGHTED LEVER PC PINS 0.1A 28VAC 28VDC 0.4VA PC MOUNT WITH BRACKET

Technical Specifications

Parameters and characteristics for this part

Specification	G12JHC

Actuator Length [x]	3.8 mm
Actuator Material	Glass Filled, Polyamide (PA), Nylon
Actuator Type	Standard Round
Bushing Thread	Unthreaded
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	100000 Cycles
Features	Process Sealed
Illumination	Illuminated
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	2 VDC
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Circuit	Termination Style	Switch Function	Illumination Type, Color	Illumination Voltage (Nominal)	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Bushing Thread	Mounting Type	Actuator Material	Actuator Length [x]	Voltage Rating - DC	Current Rating (Amps)	Electrical Life	Voltage Rating - AC	Illumination	Features
NKK Switches G12JHD	SPDT	PC Pin	On-On	Amber LED	2 VDC	-25 °C	85 °C	Standard Round	Unthreaded	Through Hole Right Angle	Glass Filled Nylon Polyamide (PA)	3.8 mm	28 V	0.4 VA	100000 Cycles	28 V	Illuminated	Process Sealed
NKK Switches G12JHF	SPDT	PC Pin	On-On	Green LED	2.1 VDC	-25 °C	85 °C	Standard Round	Unthreaded	Through Hole Right Angle	Glass Filled Nylon Polyamide (PA)	3.8 mm	28 V	0.4 VA	100000 Cycles	28 V	Illuminated	Process Sealed
NKK Switches G12JHC	SPDT	PC Pin	On-On	LED Red	2 VDC	-25 °C	85 °C	Standard Round	Unthreaded	Through Hole Right Angle	Glass Filled Nylon Polyamide (PA)	3.8 mm	28 V	0.4 VA	100000 Cycles	28 V	Illuminated	Process Sealed
NKK Switches G12JHCF	SPDT	PC Pin	On-On	Green/Red LED	2 VDC 2.1 VDC	-25 °C	85 °C	Standard Round	Unthreaded	Through Hole Right Angle	Glass Filled Nylon Polyamide (PA)	3.8 mm	28 V	0.4 VA	100000 Cycles	28 V	Illuminated	Process Sealed
