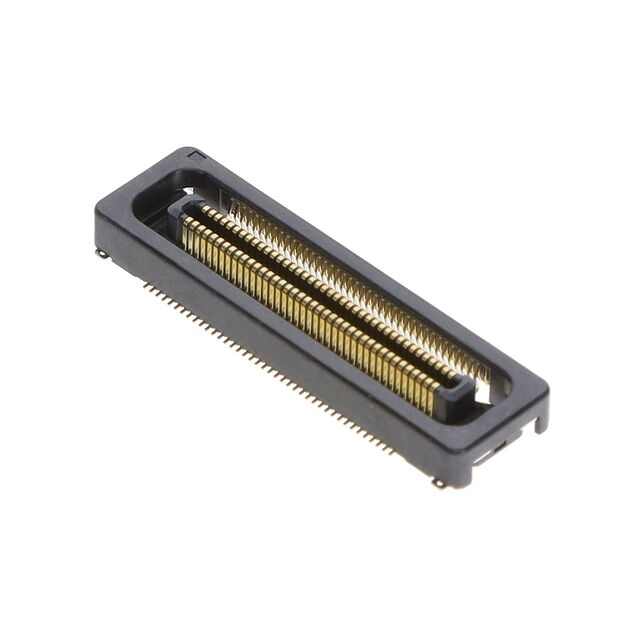

145655080000829+T

Active

Kyocera AVX

PLUG 0.5MM - 4-7MM - VERT -FLOAT

Search across all available documentation for this part.

Active

Kyocera AVX

PLUG 0.5MM - 4-7MM - VERT -FLOAT

Technical Specifications

Parameters and characteristics for this part

Specification	145655080000829+T

Connector Type	Plug, Floating
Contact Finish	Gold
Features	Solder Retention, Board Guide
Height Above Board	3.05 mm
Height Above Board	0.12 in
Mated Stacking Heights	4 mm, 6 mm, 7 mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Connector Type	Pitch [x]	Pitch [x]	Contact Finish	Number of Positions	Number of Rows	Mounting Type	Mated Stacking Heights	Features	Height Above Board	Height Above Board
Kyocera AVX 145655050000829+T	Floating Plug	0.5 mm	0.02 in	Gold	50	2	Surface Mount	4 mm 6 mm 7 mm	Board Guide Solder Retention	3.05 mm	0.12 in
Kyocera AVX 145655040000829+T	Floating Plug	0.5 mm	0.02 in	Gold	40	2	Surface Mount	4 mm 6 mm 7 mm	Board Guide Solder Retention	3.05 mm	0.12 in
Kyocera AVX 145655060000829+T	Floating Plug	0.5 mm	0.02 in	Gold	60	2	Surface Mount	4 mm 6 mm 7 mm	Board Guide Solder Retention	3.05 mm	0.12 in
Kyocera AVX 145655080000829+T	Floating Plug	0.5 mm	0.02 in	Gold	80	2	Surface Mount	4 mm 6 mm 7 mm	Board Guide Solder Retention	3.05 mm	0.12 in
Kyocera AVX 145655030000829+T	Floating Plug	0.5 mm	0.02 in	Gold	30	2	Surface Mount	4 mm 6 mm 7 mm	Board Guide Solder Retention	3.05 mm	0.12 in
Kyocera AVX 145655100000829+T	Floating Plug	0.5 mm	0.02 in	Gold	100	2	Surface Mount	4 mm 6 mm 7 mm	Board Guide Solder Retention	3.05 mm	0.12 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

80 Position Connector Plug, Floating Surface Mount Gold
