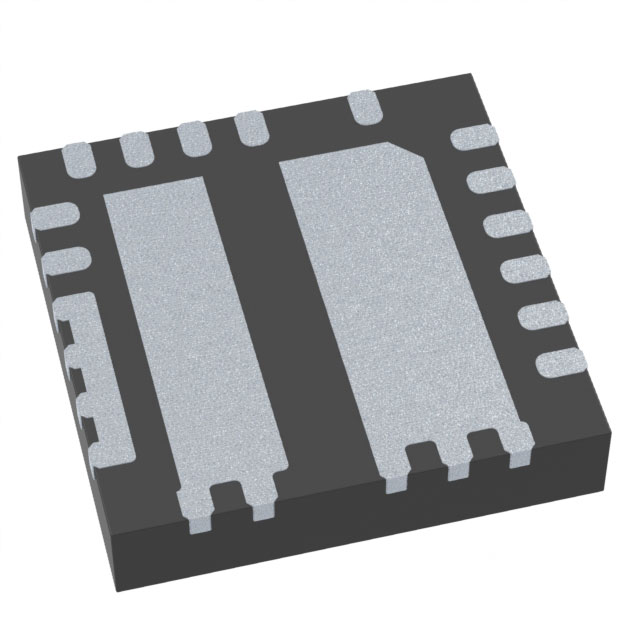

AOZ2223QI
ActiveAlpha & Omega Semiconductor Inc.
IC REG BUCK ADJ 8A 23QFNB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AOZ2223QI
ActiveAlpha & Omega Semiconductor Inc.
IC REG BUCK ADJ 8A 23QFNB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AOZ2223QI |
|---|---|
| Current - Output | 8 A |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 23-PowerTFQFN |
| Supplier Device Package | 23-QFNB (4x4) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 4.8 V |
| Voltage - Output (Max) | 16 V |
| Voltage - Output (Min/Fixed) | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.41 | |
| 10 | $ 2.17 | |||
| 25 | $ 2.05 | |||
| 100 | $ 1.74 | |||
| 250 | $ 1.64 | |||
| 500 | $ 1.43 | |||
| 1000 | $ 1.19 | |||
| Digi-Reel® | 1 | $ 2.41 | ||
| 10 | $ 2.17 | |||
| 25 | $ 2.05 | |||
| 100 | $ 1.74 | |||
| 250 | $ 1.64 | |||
| 500 | $ 1.43 | |||
| 1000 | $ 1.19 | |||
| Tape & Reel (TR) | 3000 | $ 1.10 | ||
| 6000 | $ 1.06 | |||
Description
General part information
AOZ2223 Series
Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 8A 23-PowerTFQFN
