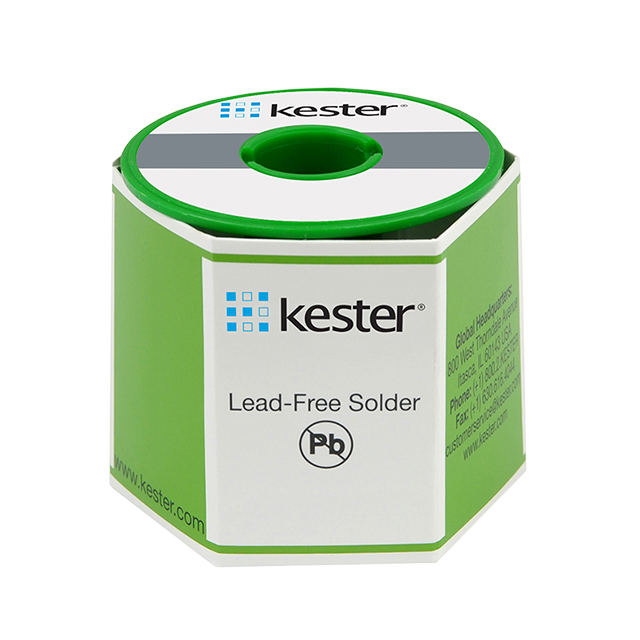

96-7069-9525
ActiveKester Solder
SN96.5AG3.0CU0.5 3.3%/268 .025 5
Deep-Dive with AI
Search across all available documentation for this part.
96-7069-9525
ActiveKester Solder
SN96.5AG3.0CU0.5 3.3%/268 .025 5
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 96-7069-9525 |
|---|---|
| Composition | Sn96.5Ag3Cu0.5 (96.5/3/0.5) |
| Flux Type | No-Clean |
| Form | Spool |
| Form | 17.64 oz, 500 g |
| Melting Point [Max] | 218 °C |
| Melting Point [Max] | 424 °F |
| Melting Point [Min] | 217 °C |
| Melting Point [Min] | 423 °F |
| Shelf Life | 36 Months |
| Shelf Life Start | Date of Manufacture |
| Storage/Refrigeration Temperature [Max] | 40 °C |
| Storage/Refrigeration Temperature [Min] | 10 °C |
| Type | Wire Solder |
| Wire Gauge | 23 SWG, 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 177.81 | |
| 5 | $ 153.00 | |||
| 10 | $ 143.37 | |||
| 30 | $ 129.26 | |||
| 50 | $ 123.16 | |||
Description
General part information
96-7069 Series
Lead Free No-Clean Wire Solder Sn96.5Ag3Cu0.5 (96.5/3/0.5) 22 AWG, 23 SWG Spool, 17.64 oz (500g)
