VER18US120-JA

Obsolete

XP POWER

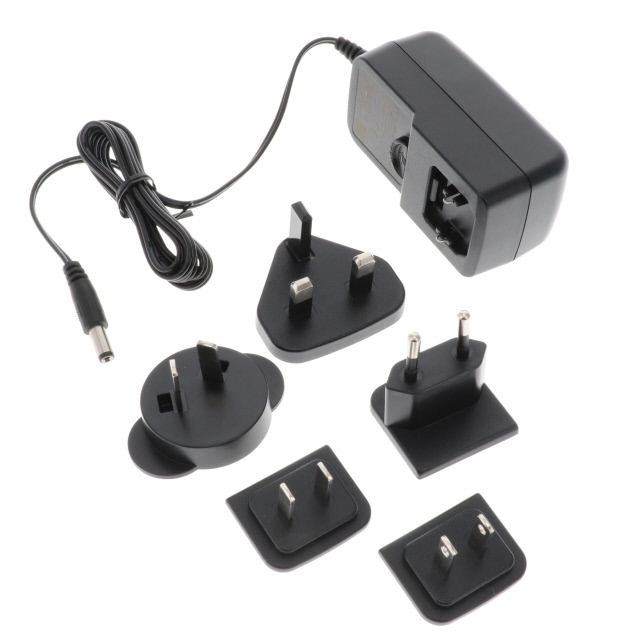

AC/DC WALL MOUNT ADAPTER 12V 18W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

VER18US120-JA

Obsolete

XP POWER

AC/DC WALL MOUNT ADAPTER 12V 18W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VER18US120-JA

Applications	ITE (Commercial)
Approval Agency	CB
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	1.5 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade
Input Type	Multi-Blade (Included)
No Load Power Consumption	100 mW
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [z]	12 mm
Polarization	Positive Center
Power (Watts)	18 W
Region Utilized	International
Size / Dimension [x]	3.54 in
Size / Dimension [x]	90 mm
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.69 in
Size / Dimension [z]	1.68 "
Size / Dimension [z]	42.7 mm
Standard Number	62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V
Weight	0.177 lb
Weight	80.29 g

VER18 Series

Part	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Input Type	Output Connector	Output Connector [diameter]	Output Connector [z]	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Input Connector	Current - Output (Max) [Max]	No Load Power Consumption	Power (Watts)	Voltage - Output	Operating Temperature [Max]	Weight	Weight	Polarization	Standard Number	Form	Applications	Region Utilized	Cord Length	Cord Length	Approval Agency
XP POWER VER18US090-JA	43 mm	1.68 "	3.54 in	42.7 mm	90 mm	1.69 in	Multi-Blade (Included)	Barrel Plug	2.1 mm 5.5 mm	12 mm	Level VI	90 VAC	264 VAC	Multi-Blade	2 A	100 mW	18 W	9 V	60 °C	0.177 lb	80.29 g	Positive Center	62368-1	Wall Mount (Class II)	ITE (Commercial)	International	1.5 m	59 in	CB
XP POWER VER18US150-JA	43 mm	1.68 "	3.54 in	42.7 mm	90 mm	1.69 in	Multi-Blade (Included)	Barrel Plug	2.1 mm 5.5 mm	12 mm	Level VI	90 VAC	264 VAC	Multi-Blade	1.25 A	100 mW	19 W	15 VDC	60 °C	0.177 lb	80.29 g	Positive Center	62368-1	Wall Mount (Class II)	ITE (Commercial)	International	1.5 m	59 in	CB
XP POWER VER18US120-JA	43 mm	1.68 "	3.54 in	42.7 mm	90 mm	1.69 in	Multi-Blade (Included)	Barrel Plug	2.1 mm 5.5 mm	12 mm	Level VI	90 VAC	264 VAC	Multi-Blade	1.5 A	100 mW	18 W	12 V	60 °C	0.177 lb	80.29 g	Positive Center	62368-1	Wall Mount (Class II)	ITE (Commercial)	International	1.5 m	59 in	CB
XP POWER VER18US240-JA	43 mm	1.68 "	3.54 in	42.7 mm	90 mm	1.69 in	Multi-Blade (Included)	Barrel Plug	2.1 mm 5.5 mm	12 mm	Level VI	90 VAC	264 VAC	Multi-Blade	750 mA	100 mW	18 W	24 V	60 °C	0.177 lb	80.29 g	Positive Center	62368-1	Wall Mount (Class II)	ITE (Commercial)	International	1.5 m	59 in	CB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 15.80
		5	$ 15.33
		10	$ 14.85
		25	$ 14.22
		100	$ 13.27

Description

General part information

VER18 Series

12V 18 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Included) Input
