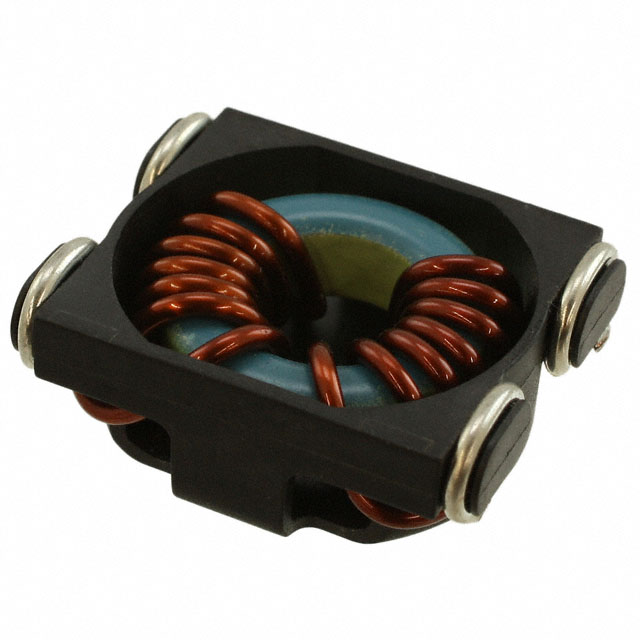

P0599NLT

Active

Pulse Electronics

COUPLED INDUCTORS IND BIGFOOT

Search across all available documentation for this part.

Active

Pulse Electronics

COUPLED INDUCTORS IND BIGFOOT

Technical Specifications

Parameters and characteristics for this part

Specification	P0599NLT

Current Rating - Parallel	38 A
Current Rating - Series [custom]	19 A
DC Resistance (DCR) - Parallel	1.3 mOhm
DC Resistance (DCR) - Series [Max]	5.1 mOhm
Height [z]	0.5 in
Height [z]	12.7 mm
Inductance - Connected In Parallel	2.1 µH
Inductance - Connected In Series	8.4 µH
Mounting Type	Surface Mount
Number of Coils	2
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Shielding	Unshielded
Size / Dimension [x]	1.22 in
Size / Dimension [x]	30.99 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Tolerance	15 %

Coupled Inductors IND BIGFOOT

Part	DC Resistance (DCR) - Series [Max]	Shielding	Mounting Type	Number of Coils	Inductance - Connected In Series	DC Resistance (DCR) - Parallel	Package / Case	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Inductance - Connected In Parallel	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating - Parallel	Current Rating - Series [custom]	Tolerance	Height [z]	Height [z]
Pulse Electronics P0599NLT	5.1 mOhm	Unshielded	Surface Mount	2	8.4 µH	1.3 mOhm	Nonstandard	1.22 in	30.99 mm	25.4 mm	25.4 mm	2.1 µH	-40 °C	130 °C	38 A	19 A	15 %	0.5 in	12.7 mm
