100025244

Active

Telegartner Inc

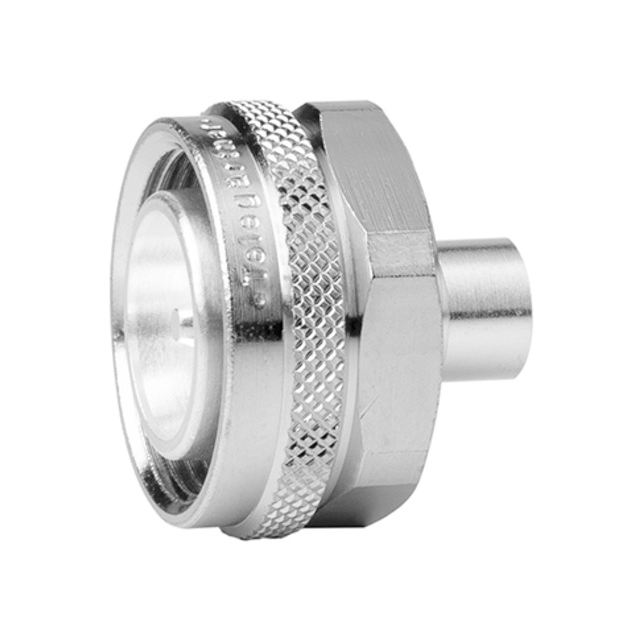

4.3-10 PLG PP STR SD/SD G9

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

100025244

Active

Telegartner Inc

4.3-10 PLG PP STR SD/SD G9

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	100025244

Body Finish	Silver
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	4.3/10
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder

J01440A3 Series

Part	Body Finish	Mounting Type	Connector Type	Number of Ports	Dielectric Material	Shield Termination	Frequency - Max [Max]	Housing Color	Center Contact Material	Connector Style	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Ingress Protection	Center Contact Plating	Impedance	Contact Termination	Voltage Rating	Mating Cycles
Telegartner Inc 100025240	White Bronze	Free Hanging (In-Line) Right Angle	Male Pin Plug	1	Polytetrafluoroethylene (PTFE)	Crimp	6000 MHz	Silver	Brass	4.3/10	85 °C	-40 °C	Brass	IP67 - Dust Tight Waterproof	Silver	50 Ohms	Solder
Telegartner Inc 100025226	White Bronze	Free Hanging (In-Line)	Male Pin Plug	1	Polytetrafluoroethylene (PTFE)	Crimp	6000 MHz	Silver	Brass	4.3/10	85 °C	-40 °C	Brass		Silver	50 Ohms	Crimp
Telegartner Inc 100025243	Silver	Free Hanging (In-Line)	Male Pin Plug	1	Polytetrafluoroethylene (PTFE)	Solder	6000 MHz	Silver	Brass	4.3/10	155 °C	-55 °C	Brass	IP67 - Dust Tight Waterproof	Silver	50 Ohms	Solder
Telegartner Inc 100025229	Silver	Free Hanging (In-Line)	Male Pin Plug	1	Polytetrafluoroethylene (PTFE)	Clamp	6000 MHz	Silver	Copper Alloy	4.3/10	85 °C	-40 °C	Beryllium Copper	IP68 - Dust Tight Waterproof	Silver	50 Ohms	Crimp Solder	1100 V
Telegartner Inc 100025238	White Bronze	Free Hanging (In-Line) Right Angle	Male Pin Plug	1	Polytetrafluoroethylene (PTFE)	Clamp	6000 MHz	Silver	Copper Alloy	4.3/10	85 °C	-40 °C	Brass	IP68 - Dust Tight Waterproof	Silver	50 Ohms	Crimp Solder	1000 VDC
Telegartner Inc 100025244	Silver	Free Hanging (In-Line)	Male Pin Plug	1	Polytetrafluoroethylene (PTFE)	Solder	6000 MHz	Silver	Brass	4.3/10	155 °C	-55 °C	Brass	IP67 - Dust Tight Waterproof	Silver	50 Ohms	Solder
Telegartner Inc 100025235	White Bronze	Free Hanging (In-Line)	Male Pin Plug	1	Polytetrafluoroethylene (PTFE)	Clamp	6000 MHz	Silver	Copper Alloy	4.3/10	100 °C	-30 ░C	Brass	IP67 - Dust Tight Waterproof	Silver	50 Ohms	Crimp Solder	1800 V
Telegartner Inc 100025137	White Bronze	Free Hanging (In-Line) Right Angle	Male Pin Plug	1	Polytetrafluoroethylene (PTFE)	Clamp	6000 MHz	Silver	Copper Alloy	4.3/10	85 °C	-40 °C	Brass	IP68 - Dust Tight Waterproof	Silver	50 Ohms	Crimp Solder	1000 VDC
Telegartner Inc 100025232	White Bronze	Free Hanging (In-Line)	Male Pin Plug	1		Clamp	6000 MHz	Silver	Copper Alloy	4.3/10	85 °C	-40 °C	Brass	IP68 - Dust Tight Waterproof	Silver	50 Ohms	Crimp Solder	1000 VDC	500

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 17.34
		10	$ 15.93
		25	$ 14.74
		50	$ 13.10

Description

General part information

J01440A3 Series

4.3/10 Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
