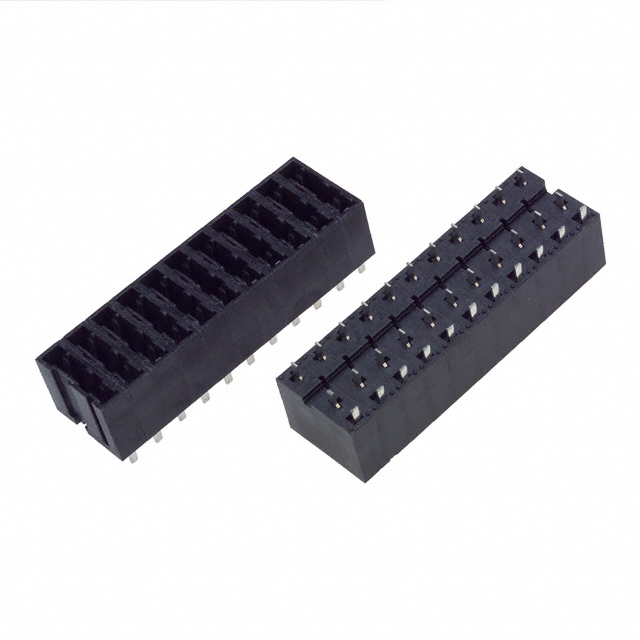

04820011ZXB

Active

Littelfuse/Commercial Vehicle Products

FUSE HOLDER BLADE 125V 15A PCB

Search across all available documentation for this part.

Active

Littelfuse/Commercial Vehicle Products

FUSE HOLDER BLADE 125V 15A PCB

Technical Specifications

Parameters and characteristics for this part

Specification	04820011ZXB

Contact Finish	Tin
Contact Material	Beryllium Copper
Current Rating (Amps)	15 A
For Use With/Related Products	481 Alarm Fuse
Fuse Size [x]	0.665 "
Fuse Size [x]	16.9 mm
Fuse Size [y]	0.315 "
Fuse Size [y]	8 mm
Fuse Size [z]	0.772 "
Fuse Size [z]	19.6 mm
Fuse Type	Blade
Fuseholder Type	Holder
Mounting Type	Through Hole
Number of Circuits	11
Orientation	Vertical
Termination Style	PC Pin
Voltage	125 V

ACS ALARM HLDR PCB MT 11 POLE

Part	Fuseholder Type	Termination Style	Voltage	Contact Material	Fuse Size [x]	Fuse Size [z]	Fuse Size [y]	Fuse Size [z]	Fuse Size [x]	Fuse Size [y]	Number of Circuits	Fuse Type	Mounting Type	Current Rating (Amps)	Orientation	For Use With/Related Products	Contact Finish
Littelfuse/Commercial Vehicle Products 04820011ZXB	Holder	PC Pin	125 V	Beryllium Copper	0.665 "	0.772 "	0.315 "	19.6 mm	16.9 mm	8 mm	11	Blade	Through Hole	15 A	Vertical	481 Alarm Fuse	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	15	$ 21.92

General part information

ACS ALARM HLDR PCB MT 11 POLE
