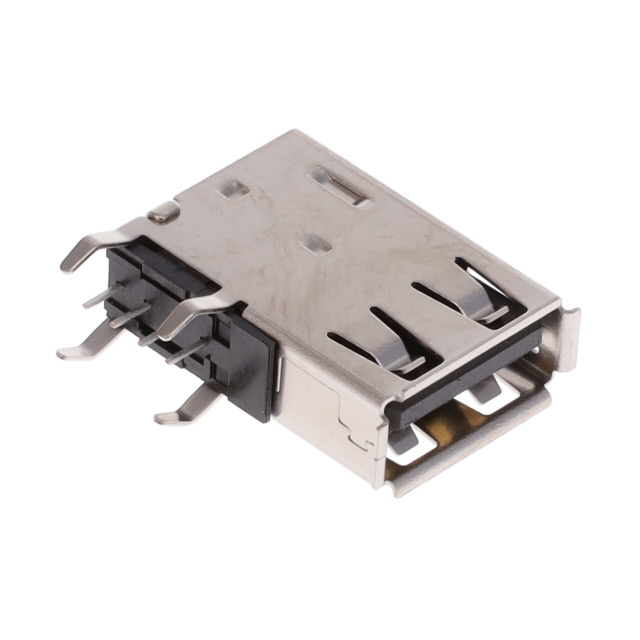

GSB19111KEU

Active

Amphenol ICC (Commercial Products)

USB 2.0 STANDARD A, UPRIGHT DIP,

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

USB 2.0 STANDARD A, UPRIGHT DIP,

Technical Specifications

Parameters and characteristics for this part

Specification	GSB19111KEU

Connector Type	USB-A (USB TYPE-A)
Contact Finish	Gold
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	1500
Mounting Feature	Vertical, Flag
Mounting Type	Through Hole, Right Angle
Number of Contacts [custom]	4
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shell/Shielding Material	Stainless, Steel
Shielding	Shielded
Specifications	USB 2.0
Termination	Solder
Voltage - Rated	30 V

Part	Shell/Shielding Material	Mating Cycles	Connector Type	Termination	Insulation Color	Material Flammability Rating	Mounting Feature	Number of Ports	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Voltage - Rated	Specifications	Gender	Number of Contacts [custom]	Mounting Type
Amphenol ICC (Commercial Products) GSB19111KEU	Stainless Steel	1500	USB-A (USB TYPE-A)	Solder	Black	UL94 V-0	Flag Vertical	1	Gold	85 °C	-40 °C	Shielded	30 V	USB 2.0	Receptacle	4	Through Hole Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-A (USB TYPE-A) USB 2.0 Receptacle Connector 4 Position Through Hole, Right Angle
