C4BTHBX5200ZANJ
ActiveKEMET

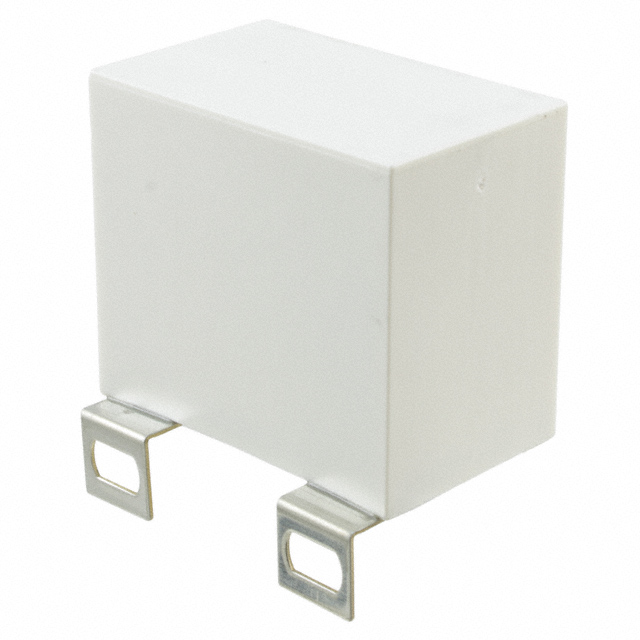

CAP, FILM, PP, 20UF, 600VDC, PANEL ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
C4BTHBX5200ZANJ
ActiveKEMET
CAP, FILM, PP, 20UF, 600VDC, PANEL ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C4BTHBX5200ZANJ |
|---|---|
| Applications | Switching, High Frequency, DC Filtering, DC Link |
| Capacitance | 20 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 1.7 mOhm |
| Lead Spacing | 41 mm |
| Lead Spacing | 1.614 in |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Rectangular Box |
| Size / Dimension [x] | 2.264 in |
| Size / Dimension [x] | 57.5 mm |
| Size / Dimension [y] | 35 mm |
| Size / Dimension [y] | 1.378 " |
| Termination | Screw Terminals |
| Tolerance | 5 % |
| Voltage Rating - AC | 330 V |
| Voltage Rating - DC | 600 V |
C4BTHB Series
| Part | Lead Spacing | Lead Spacing | Voltage Rating - AC | Voltage Rating - DC | Mounting Type | Capacitance | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Tolerance | ESR (Equivalent Series Resistance) | Applications | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Dielectric Material | Termination | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
KEMET | 41 mm | 1.614 in | 330 V | 600 V | Chassis Mount | 20 µF | Rectangular Box | 85 °C | -40 °C | 5 % | 1.7 mOhm | DC Filtering DC Link High Frequency Switching | 35 mm | 1.378 " | 2.264 in | 57.5 mm | Metallized Polypropylene (PP) | Screw Terminals | ||
KEMET | 25.5 mm | 1.004 in | 330 V | 600 V | Chassis Mount | 5 µF | Rectangular Box | 85 °C | -40 °C | 5 % | 2.9 mOhms | DC Filtering DC Link High Frequency Switching | 20 mm | 0.787 in | 1.634 " | 41.5 mm | Metallized Polypropylene (PP) | Screw Terminals | 1.575 in | 40 mm |
KEMET | 25.5 mm | 1.004 in | 330 V | 600 V | Chassis Mount | 10 µF | Rectangular Box | 85 °C | -40 °C | 5 % | 1.6 mOhms | DC Filtering DC Link High Frequency Switching | 30 mm | 1.181 in | 1.654 in | 42 mm | Metallized Polypropylene (PP) | Screw Terminals | 1.772 in | 45 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
C4BTHB Series
20 µF Film Capacitor 330V 600V Polypropylene (PP), Metallized Rectangular Box
