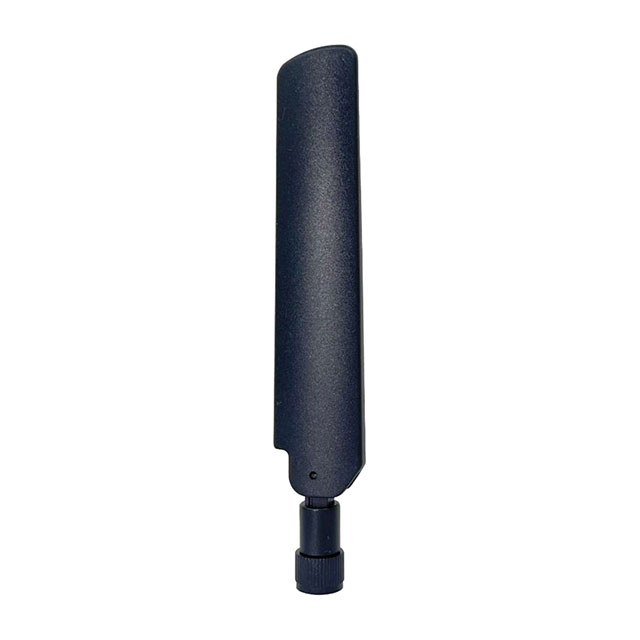

AETC1302XS-SS

Active

Abracon LLC

ANTENNA, 5.15GHZ TO 7.15GHZ, 2DBI ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Abracon LLC

ANTENNA, 5.15GHZ TO 7.15GHZ, 2DBI ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	AETC1302XS-SS

Antenna Type	Tilt, Whip
Applications	Wi-Fi, Bluetooth, LTE, 4G, WLAN, Zigbee™, 5G
Frequency (Center/Band)	2.2 GHz, 6.15 GHz, 4.7 GHz, 3.75 GHz, 788.5 MHz, 1.513 GHz
Frequency Group	Wide Band
Frequency Range [Max]	2.69 GHz, 5 GHz, 1.575 GHz, 4.2 GHz, 960 MHz, 7.15 GHz
Frequency Range [Min]	3.3 GHz, 5.15 GHz, 1.452 GHz, 1.71 GHz, 4.4 GHz, 617 MHz
Gain	2 dBic, 1 dBi
Height (Max) [Max]	135.5 mm
Height (Max) [Max]	5.335 in
Mounting Type	Connector Mount
Number of Bands	6
Power - Max [Max]	500 mW
Return Loss	12 dB
RF Family/Standard	Cellular, Bluetooth, 802.15.4, WiFi
VSWR	3, 2.5

Part	Frequency Range [Max]	Frequency Range [Min]	Mounting Type	Power - Max [Max]	Antenna Type	Gain	VSWR	Frequency (Center/Band)	Height (Max) [Max]	Height (Max) [Max]	Frequency Group	RF Family/Standard	Applications	Number of Bands	Return Loss
Abracon LLC AETC1302XS-SS	1.575 GHz 2.69 GHz 4.2 GHz 5 GHz 7.15 GHz 960 MHz	1.452 GHz 1.71 GHz 3.3 GHz 4.4 GHz 5.15 GHz 617 MHz	Connector Mount	500 mW	Tilt Whip	1 dBi 2 dBic	2.5 3	1.513 GHz 2.2 GHz 3.75 GHz 4.7 GHz 6.15 GHz 788.5 MHz	135.5 mm	5.335 in	Wide Band	802.15.4 Bluetooth Cellular WiFi	4G 5G Bluetooth LTE Wi-Fi WLAN Zigbee™	6	12 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA 4G, 5G, Bluetooth, LTE, Wi-Fi, WLAN, Zigbee™ Whip, Tilt SMA Male Connector Mount
