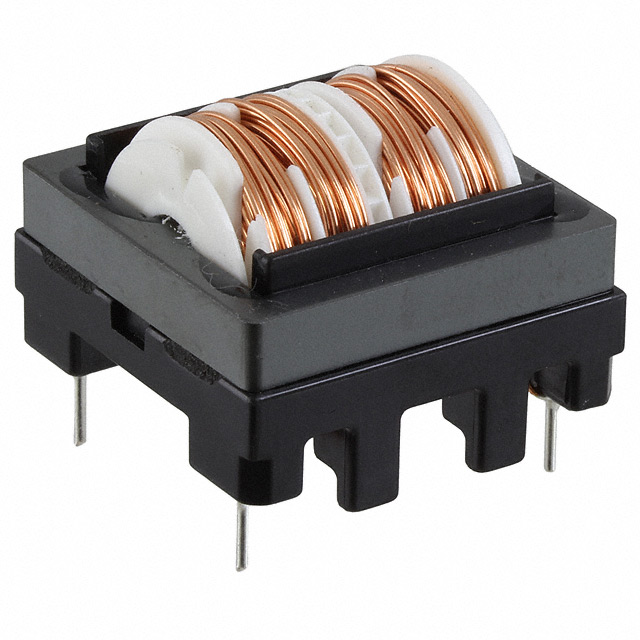

SS28H-R10450-CH - SS28H-R10450-CH

SS28H-R10450-CH

Active
KEMET

V ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet ENManufacturer Catalogue EN+1
SS28H-R10450-CH - SS28H-R10450-CH

SS28H-R10450-CH

Active
KEMET

V ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsTechnical Data Sheet ENManufacturer Catalogue EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationSS28H-R10450-CH
Current Rating (Max) [Max]1 A
DC Resistance (DCR) (Max) [Max]650 mOhm
Filter TypePower Line
Height (Max) [Max] [z]24.5 mm
Height (Max) [Max] [z]0.965 in
Inductance @ Frequency45 mH, 1 kHz
Mounting TypeThrough Hole
Number of Lines2
Operating Temperature [Max]120 °C
Operating Temperature [Min]-25 °C
Package / Case4 Lead
Package / CaseVertical
Size / Dimension [x]1.181 in
Size / Dimension [x]30 mm
Size / Dimension [y]1.181 in
Size / Dimension [y]30 mm
Voltage Rating - AC250 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 1.27
10$ 1.15
40$ 1.08
80$ 1.05
120$ 1.03
280$ 0.99
520$ 0.96
1000$ 0.94
5000$ 0.87
NewarkEach 100$ 1.82
500$ 1.66
1000$ 1.47
2500$ 1.36

Description

General part information

SS28H Series

45 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 1A DCR 650mOhm
