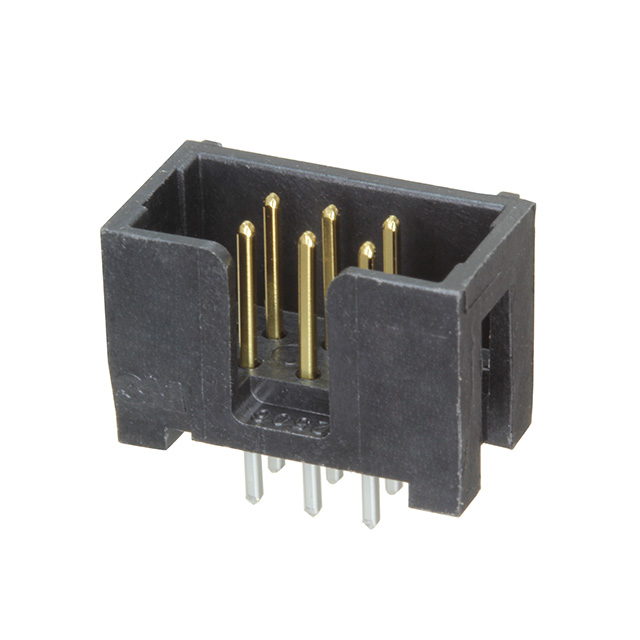

N2506-6002RB

Active

3M (TC)

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 6 CONTACTS, THROUGH HOLE STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Change Notice EN +1

N2506-6002RB

Active

3M (TC)

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 6 CONTACTS, THROUGH HOLE STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Product Change Notice EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	N2506-6002RB

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Post	2.84 mm
Contact Length - Post	0.112 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.75 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height [z]	9.91 mm
Insulation Height [z]	0.39 in
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

N2506 Series

Part	Insulation Material	Connector Type	Fastening Type	Contact Shape	Insulation Height [z]	Insulation Height [z]	Style	Insulation Color	Material Flammability Rating	Contact Finish - Post	Termination	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features	Pitch - Mating	Pitch - Mating	Number of Rows	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Contact Material	Current Rating (Amps)	Mounting Type	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post
3M (TC) N2506-6V0C-RB-WD	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Header	Push-Pull	Square	9.91 mm	0.39 in	Board to Board Cable	Black	UL94 V-0	Tin	Solder	6	200 µin	5.08 µm	Keying Slot Pick and Place	0.1 in	2.54 mm	2	All	2.54 mm	0.1 in	105 ░C	-55 °C	Gold	Male Pin	30 Áin	0.76 Ám	Shrouded - 4 Wall	Copper Alloy	1.75 A	Surface Mount
3M (TC) N2506-5002RB	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Header	Push-Pull	Square			Board to Board Cable	Black	UL94 V-0	Tin	Solder	6	200 µin	5.08 µm	Keying Slot	0.1 in	2.54 mm	2	All	2.54 mm	0.1 in	105 ░C	-55 °C	Gold	Male Pin	30 Áin	0.76 Ám	Shrouded - 4 Wall	Copper Alloy	1.75 A	Through Hole Right Angle	0.338 in	8.59 mm	2.84 mm	0.112 in
3M (TC) N2506-6002RB	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Header	Push-Pull	Square	9.91 mm	0.39 in	Board to Board Cable	Black	UL94 V-0	Tin	Solder	6	200 µin	5.08 µm	Keying Slot	0.1 in	2.54 mm	2	All	2.54 mm	0.1 in	105 ░C	-55 °C	Gold	Male Pin	30 Áin	0.76 Ám	Shrouded - 4 Wall	Copper Alloy	1.75 A	Through Hole			2.84 mm	0.112 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.59
		10	$ 1.38
		100	$ 1.23
		500	$ 1.04

Description

General part information

N2506 Series

Connector Header Through Hole 6 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Product Change Notice EN

Datasheet

Drawing EN

Datasheet
