WMS-160Z

Obsolete

On Shore Technology Inc.

CONN IC DIP SOCKET 16POS GOLD

Search across all available documentation for this part.

Obsolete

On Shore Technology Inc.

CONN IC DIP SOCKET 16POS GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	WMS-160Z

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post [custom]	Brass
Contact Resistance	4 mOhm
Current Rating (Amps)	3 A
Features	Wash Away, Open Frame
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	16
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Type	0.3 "
Type	7.62 mm
Type	DIP

Part	Contact Finish - Mating	Type	Type	Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material - Post [custom]	Pitch - Mating	Pitch - Mating	Number of Positions or Pins (Grid)	Contact Resistance	Contact Material - Mating	Features	Mounting Type	Current Rating (Amps)	Pitch - Post	Pitch - Post	Contact Finish Thickness - Mating	Material Flammability Rating	Termination	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post
On Shore Technology Inc. WMS-160Z	Gold	0.3 "	7.62 mm	DIP	-40 °C	105 ░C	Brass	0.1 in	2.54 mm	16	4 mOhm	Beryllium Copper	Open Frame Wash Away	Through Hole	3 A	2.54 mm	0.1 in	Flash	UL94 V-0	Solder	Tin	200 µin	5.08 µm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

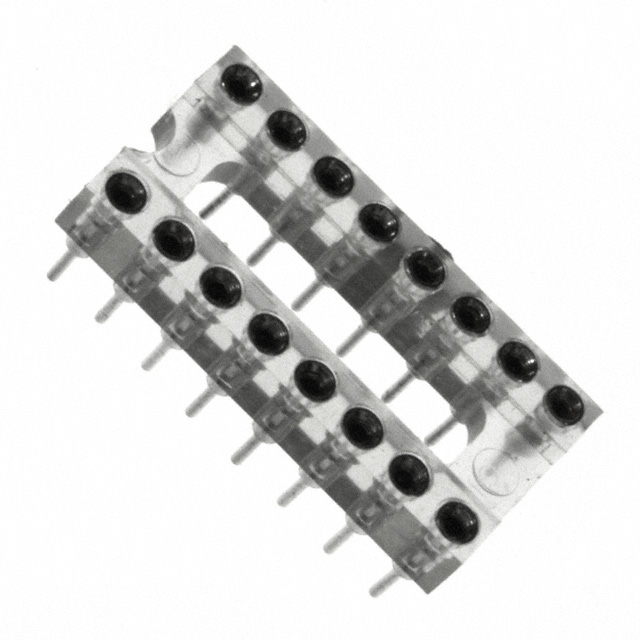

16 (2 x 8) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
