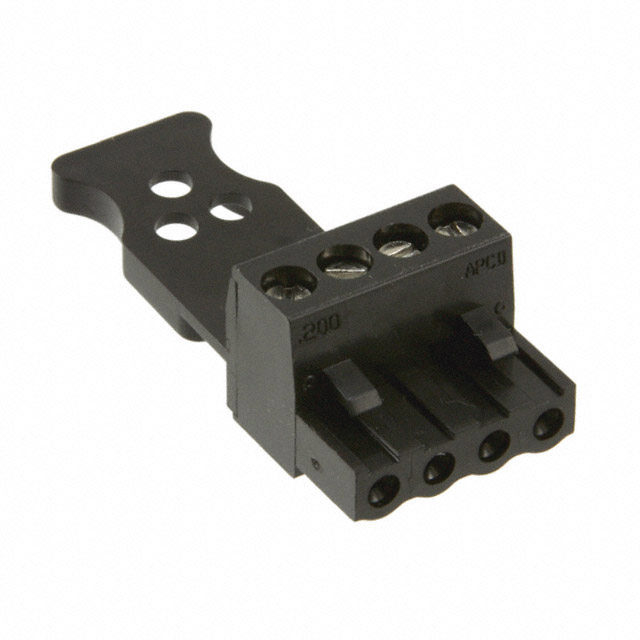

ELFP0421P0

Active

AMPHENOL PCD

TERM BLOCK PLUG 4POS STR 5.08MM

Search across all available documentation for this part.

Active

AMPHENOL PCD

TERM BLOCK PLUG 4POS STR 5.08MM

Technical Specifications

Parameters and characteristics for this part

Specification	ELFP0421P0

Color	Black
Contact Material	Copper Alloy
Contact Mating Finish	Tin-Lead
Features	Strain Relief, Retention Latches (Non-Wire Side)
Housing Material	Polyphenylene Oxide (PPO)
Insulation Height	16.8 mm
Insulation Height	0.661 in
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	4
Operating Temperature	105 C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	4
Termination Style	Screw - Rising Cage Clamp
Torque - Screw	0.79 Nm
Torque - Screw	7 Lb-In
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG	12 AWG
Wire Gauge or Range - AWG [Max]	26 AWG
Wire Gauge or Range - AWG [Min]	14 AWG

Part	Voltage - UL	Type	Pitch [x]	Pitch [x]	Housing Material	Contact Material	Torque - Screw	Torque - Screw	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG	Wire Gauge or Range - AWG [Min]	Insulation Height	Insulation Height	Mounting Type	Contact Mating Finish	Termination Style	Color	Number of Levels	Material Flammability Rating	Positions Per Level	Operating Temperature	Features
AMPHENOL PCD ELFP04210	300 V	Plug Female Sockets	0.2 in	5.08 mm	Polyphenylene Oxide (PPO)	Copper Alloy	0.79 Nm	7 Lb-In	-40 °C	203 °F	4	26 AWG	12 AWG	14 AWG	15.04 mm	0.592 in	Free Hanging (In-Line)	Tin	Screw - Rising Cage Clamp	Black	1	UL94 V-0	4
AMPHENOL PCD ELFP0421P0	300 V	Plug Female Sockets	0.2 in	5.08 mm	Polyphenylene Oxide (PPO)	Copper Alloy	0.79 Nm	7 Lb-In			4	26 AWG	12 AWG	14 AWG	16.8 mm	0.661 in	Free Hanging (In-Line)	Tin-Lead	Screw - Rising Cage Clamp	Black	1	UL94 V-0	4	105 C	Retention Latches (Non-Wire Side) Strain Relief
AMPHENOL PCD ELFP04210E

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line)
