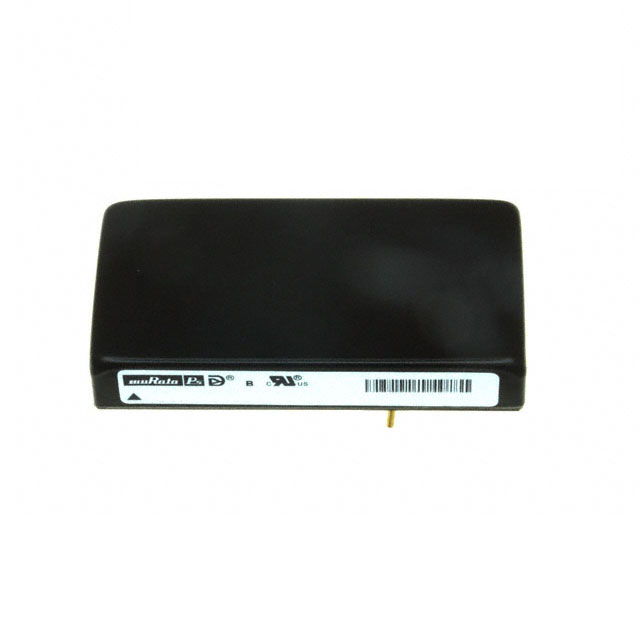

UWR-96/100-D48A-C
ObsoleteMurata Power Solutions Inc.
DC DC CONVERTER 96V 10W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UWR-96/100-D48A-C
ObsoleteMurata Power Solutions Inc.
DC DC CONVERTER 96V 10W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UWR-96/100-D48A-C |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 100 mA |
| Efficiency | 88 % |
| Features | OVP, UVLO, SCP, OCP, OTP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-DIP Module, 4 Leads |
| Power (Watts) | 10 W |
| Size / Dimension [x] | 2 in |
| Size / Dimension [x] | 50.8 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 96 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
UWR-96 Series
Isolated Module DC DC Converter 1 Output 96V 100mA 36V - 75V Input
