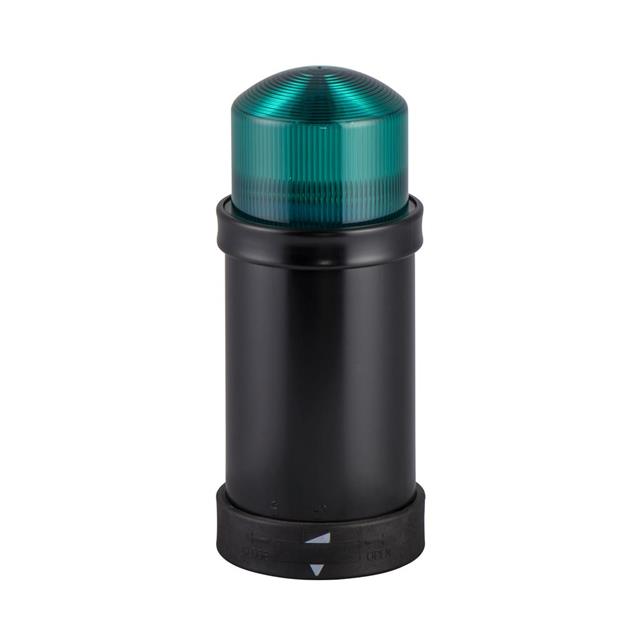

XVBC8B3
ObsoleteSQUARE D BY SCHNEIDER ELECTRIC
COMPLETE UNIT GREEN FLASH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XVBC8B3
ObsoleteSQUARE D BY SCHNEIDER ELECTRIC
COMPLETE UNIT GREEN FLASH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XVBC8B3 |
|---|---|
| Function - Lighting | Flashing |
| Ingress Protection | IP66, IP65 |
| Light Color | Green |
| Number of Stacks | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Termination Style | Screw Terminal |
| Type | Complete Unit |
| Voltage - Supply | 24 VAC |
| Weight | 303.91 g |
| Weight | 0.67 lb |
XVBC8 Series
| Part | Termination Style | Ingress Protection | Voltage - Supply | Number of Stacks | Function - Lighting | Light Color | Operating Temperature [Min] | Operating Temperature [Max] | Type | Weight | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
SQUARE D BY SCHNEIDER ELECTRIC | Screw Terminal | IP65 IP66 | 120 VAC | 1 | Flashing | Green | -40 °C | 70 °C | Complete Unit | ||
SQUARE D BY SCHNEIDER ELECTRIC | Screw Terminal | IP65 IP66 | 120 VAC | 1 | Flashing | -40 °C | 70 °C | Complete Unit | 303.91 g | 0.67 lb | |
SQUARE D BY SCHNEIDER ELECTRIC | Screw Terminal | IP65 IP66 | 120 VAC | 1 | Flashing | Yellow | -40 °C | 70 °C | Complete Unit | 303.91 g | 0.67 lb |
SQUARE D BY SCHNEIDER ELECTRIC | Screw Terminal | IP65 IP66 | 24 VAC | 1 | Flashing | Clear | -40 °C | 70 °C | Complete Unit | 303.91 g | 0.67 lb |
SQUARE D BY SCHNEIDER ELECTRIC | Screw Terminal | IP65 IP66 | 120 VAC | 1 | Flashing | Red | -40 °C | 70 °C | Complete Unit | 303.91 g | 0.67 lb |
SQUARE D BY SCHNEIDER ELECTRIC | Screw Terminal | IP65 IP66 | 24 VAC | 1 | Flashing | Yellow | -40 °C | 70 °C | Complete Unit | ||
SQUARE D BY SCHNEIDER ELECTRIC | Screw Terminal | IP65 IP66 | 120 VAC | 1 | Flashing | Orange | -40 °C | 70 °C | Complete Unit | ||
SQUARE D BY SCHNEIDER ELECTRIC | Screw Terminal | IP65 IP66 | 24 VAC | 1 | Flashing | Green | -40 °C | 70 °C | Complete Unit | 303.91 g | 0.67 lb |
SQUARE D BY SCHNEIDER ELECTRIC | Screw Terminal | IP65 IP66 | 230 VAC | 1 | Flashing | Red | -40 °C | 70 °C | Complete Unit | 303.91 g | 0.67 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
XVBC8 Series
Stack Light Complete Unit Green Flashtube Screw Terminal
Documents
Technical documentation and resources
