EM1344V143SO8A+
ActiveEM Microelectronic
CMOS CIRCUIT FOR ANALOG QUARTZ C
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EM1344V143SO8A+
ActiveEM Microelectronic
CMOS CIRCUIT FOR ANALOG QUARTZ C
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EM1344V143SO8A+ |
|---|---|
| Applications | General Purpose |
| Current - Output | 4 mA |
| Function | Driver |
| Motor Type - AC, DC | Brushed DC |
| Motor Type - Stepper | Bipolar |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Output Configuration | Half Bridge (2) |

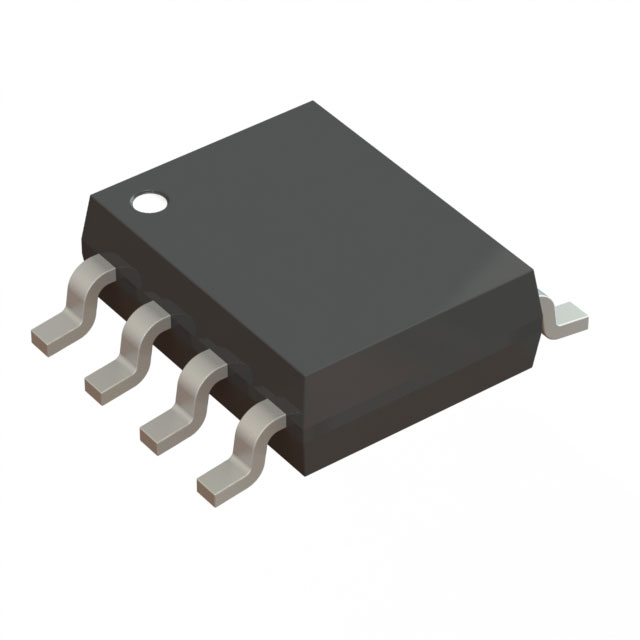

| Package / Case | 8-SOIC |
| Package / Case [x] | 0.154 in |
| Package / Case [y] | 3.9 mm |
| Supplier Device Package | 8-SOIC |
| Technology | CMOS |
| Voltage - Supply [Max] | 1.8 V |
| Voltage - Supply [Min] | 1.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 960 | $ 0.74 | |
Description
General part information
EM1344 Series
Bipolar Motor Driver CMOS 8-SOIC
