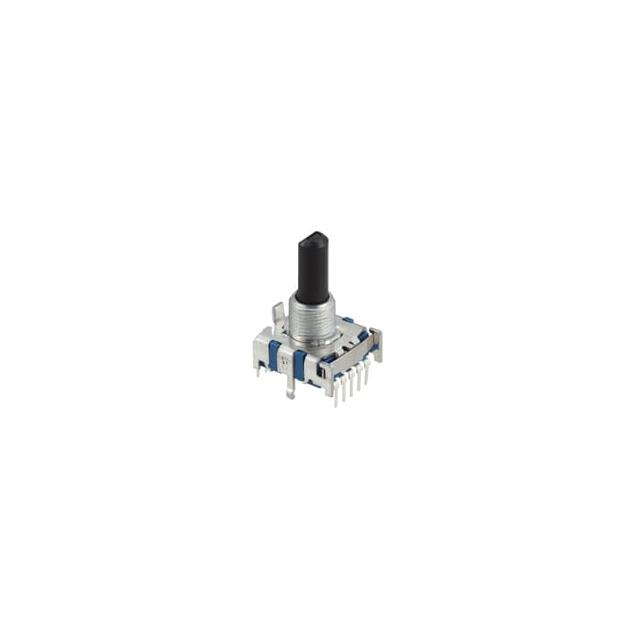

SRBV141201
ActiveAlps Alpine
ROTARY SWITCH, 1 POLE, 4POS, 0.3A, 16VDC ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
SRBV141201
ActiveAlps Alpine
ROTARY SWITCH, 1 POLE, 4POS, 0.3A, 16VDC ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | SRBV141201 |
|---|---|
| Actuator Length [x] | 20 mm |
| Actuator Type | Flatted |
| Angle of Throw | 30 ° |
| Circuit per Deck | SP4T |
| Contact Timing | Non-Shorting |
| Current Rating (Amps) | 300 mA |
| Index Stops | Fixed |
| Mounting Type | Through Hole |
| Number of Decks [custom] | 1 |
| Number of Poles per Deck | 1 |
| Number of Positions | 4 |
| Termination Style | PC Pin |
| Voltage Rating - DC | 16 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SRBV14 Series
Rotary Switch 4 Position SP4T 300mA (DC) AC Through Hole
