UF102G_R2_00001

Active

Panjit International Inc.

GLASS PASSIVATED JUNCTION ULTRAF

Search across all available documentation for this part.

Active

Panjit International Inc.

GLASS PASSIVATED JUNCTION ULTRAF

Technical Specifications

Parameters and characteristics for this part

Specification	UF102G_R2_00001

Capacitance @ Vr, F	17 pF
Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	1 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	DO-204AL, DO-41, Axial
Reverse Recovery Time (trr)	50 ns
Speed	200 mA, 500 ns
Supplier Device Package	DO-41
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	200 V
Voltage - Forward (Vf) (Max) @ If	1 V

Part	Technology	Mounting Type	Capacitance @ Vr, F	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Speed	Package / Case	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr
Panjit International Inc. UF102G_R2_00001	Standard	Through Hole	17 pF	DO-41	1 V	200 mA 500 ns	Axial DO-204AL DO-41	150 °C	-55 °C	1 A	200 V	50 ns	1 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

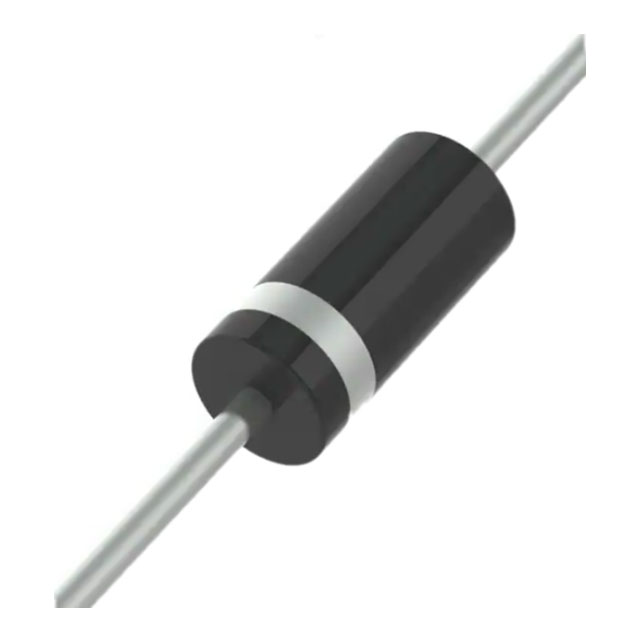

Diode 200 V 1A Through Hole DO-41
