F6V0.50TB1500

Active

Techflex

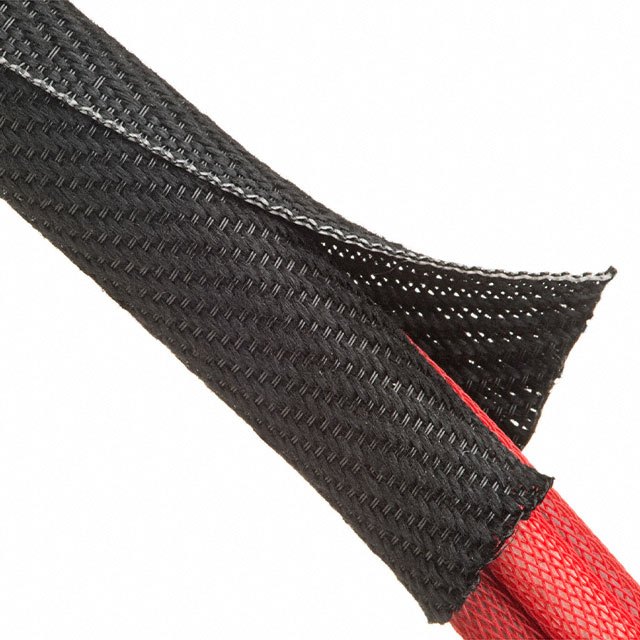

SELF WRAP 1/2" X 1500' BLACK

Search across all available documentation for this part.

Active

Techflex

SELF WRAP 1/2" X 1500' BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	F6V0.50TB1500

Abrasion Protection	Abrasion Resistant
Color	Black
Diameter - Inside, Non-Expanded [diameter]	0.5 in
Diameter - Inside, Non-Expanded [diameter]	12.7 mm
Features	Clean Cut, White Tracer
Heat Protection	Flame Retardant
Length	457.2 m
Length [x]	1500 ft
Material	Polyethylene Terephthalate (PET), Halogen Free
Material Flammability Rating	UL VW-1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-70 °C
Type	Self Wrap
Type Attributes	Split Flexible Tube
Wall Thickness	0.69 mm
Wall Thickness	0.027 in

Part	Color	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Type Attributes	Material	Type	Abrasion Protection	Wall Thickness	Wall Thickness	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Heat Protection	Length [x]	Length	Features
Techflex F6V0.50TB1500	Black	UL VW-1	125 °C	-70 °C	Split Flexible Tube	Polyethylene Terephthalate (PET) Halogen Free	Self Wrap	Abrasion Resistant	0.69 mm	0.027 in	0.5 in	12.7 mm	Flame Retardant	1500 ft	457.2 m	Clean Cut White Tracer

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Self Wrap X 1500' (457.20m) Black
