16-810-90C

Active

Aries Electronics

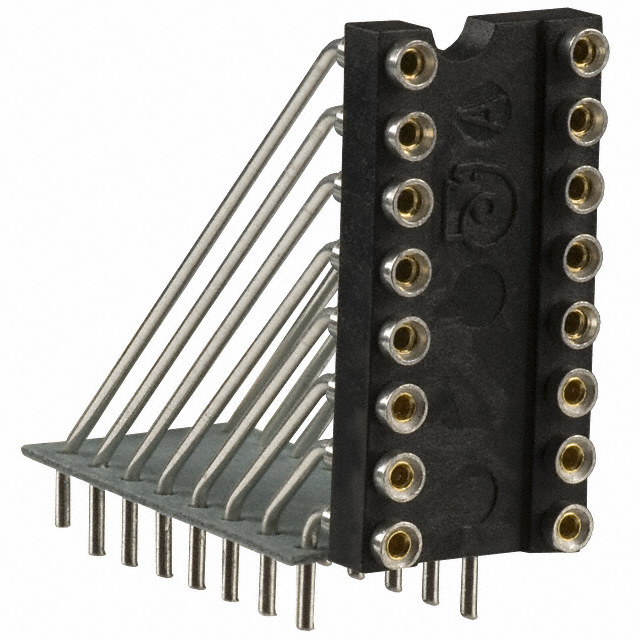

CONN IC DIP SOCKET 16POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

16-810-90C

Active

Aries Electronics

CONN IC DIP SOCKET 16POS GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	16-810-90C

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post [custom]	Brass
Current Rating (Amps)	3 A
Features	Closed Frame
Housing Material	Glass Filled, Polyamide (PA46), Nylon 4/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Vertical, Right Angle
Number of Positions or Pins (Grid)	16
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.56 mm
Termination Post Length	0.14 in
Type	0.3 "
Type	7.62 mm
Type	DIP

16-810 Series

Part	Features	Termination Post Length	Termination Post Length	Contact Material - Post	Contact Material - Mating	Termination	Mounting Type	Type	Type	Type	Pitch - Mating	Pitch - Mating	Pitch - Post	Pitch - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Housing Material	Contact Finish - Post	Material Flammability Rating	Current Rating (Amps)	Number of Positions or Pins (Grid)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Contact Material - Post [custom]	Operating Temperature [Max]	Operating Temperature [Min]
Aries Electronics 16-810-90TWR	Closed Frame	0.145 "	3.68 mm	Phosphor Bronze	Phosphor Bronze	Solder	Right Angle Through Hole Vertical	0.3 "	7.62 mm	DIP	0.1 in	2.54 mm	2.54 mm	0.1 in	5.08 µm	200 µin	Polyamide (PA46) Nylon 4/6	Tin	UL94 V-0	1.5 A	16	200 µin	5.08 µm
Aries Electronics 16-810-90T	Closed Frame	0.145 "	3.68 mm	Phosphor Bronze	Phosphor Bronze	Solder	Right Angle Through Hole Vertical	0.3 "	7.62 mm	DIP	0.1 in	2.54 mm	2.54 mm	0.1 in	5.08 µm	200 µin	Polyamide (PA46) Nylon 4/6	Tin	UL94 V-0	1.5 A	16	200 µin	5.08 µm
Aries Electronics 16-810-90C	Closed Frame	0.14 in	3.56 mm		Beryllium Copper	Solder	Right Angle Through Hole Vertical	0.3 "	7.62 mm	DIP	0.1 in	2.54 mm	2.54 mm	0.1 in	0.76 Ám	30 Áin	Glass Filled Nylon 4/6 Polyamide (PA46)	Tin	UL94 V-0	3 A	16	200 µin	5.08 µm	Gold	Brass
Aries Electronics 16-81000-310C	Closed Frame Elevated	0.14 in	3.56 mm		Beryllium Copper	Solder	Through Hole	0.3 "	7.62 mm	DIP	0.1 in	2.54 mm	2.54 mm	0.1 in	0.76 Ám	30 Áin	Glass Filled Nylon 4/6 Polyamide (PA46)	Gold	UL94 V-0	3 A	16	10 çin	0.25 çm	Gold	Brass	105 ░C	-55 °C
Aries Electronics 16-810-90WR	Closed Frame	0.145 "	3.68 mm	Phosphor Bronze	Phosphor Bronze	Solder	Right Angle Through Hole Vertical	0.3 "	7.62 mm	DIP	0.1 in	2.54 mm	2.54 mm	0.1 in	0.25 çm	10 çin	Polyamide (PA46) Nylon 4/6	Gold	UL94 V-0	1.5 A	16	10 çin	0.25 çm	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.69
		10	$ 11.25
		25	$ 10.81
		50	$ 10.38
		100	$ 9.80
		250	$ 8.94
		500	$ 8.36
		1000	$ 7.67

Description

General part information

16-810 Series

16 (2 x 8) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole, Right Angle, Vertical
