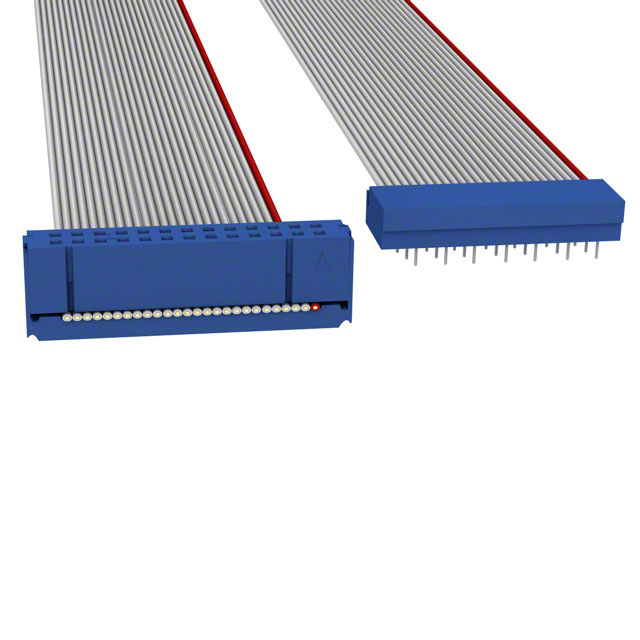

C3APS-2636G

Active

CW Industries

IDC CABLE - CSC26S/AE26G/CPC26S

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CSC26S/AE26G/CPC26S

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Pitch - Cable	Pitch - Cable	Number of Positions	Contact Finish	Length [x]	Length [x]	Usage	Pitch - Connector	Pitch - Connector	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	Shielding	Color	Length	Length	Length
CW Industries C3APS-2636G	Socket to PCB	0.05 "	1.27 mm	26	Tin	3 ft	914.4 mm	Board In	0.1 in	2.54 mm	2.54 µm	100 µin	IDC	Unshielded
CW Industries C3APS-2018G	Socket to PCB	0.05 "	1.27 mm	20	Tin	1.5 ft	457.2 mm	Board In	0.1 in	2.54 mm	2.54 µm	100 µin	IDC	Unshielded
CW Industries C3APS-2018M	Socket to PCB	0.05 "	1.27 mm	20	Tin	1.5 ft	457.2 mm	Board In	0.1 in	2.54 mm	2.54 µm	100 µin	IDC	Unshielded	Multiple Ribbon
CW Industries C3APS-2036G	Socket to PCB	0.05 "	1.27 mm	20	Tin	3 ft	914.4 mm	Board In	0.1 in	2.54 mm	2.54 µm	100 µin	IDC	Unshielded
CW Industries C3APS-2618G	Socket to PCB	0.05 "	1.27 mm	26	Tin	1.5 ft	457.2 mm	Board In	0.1 in	2.54 mm	2.54 µm	100 µin	IDC	Unshielded
CW Industries C3APS-2618M	Socket to PCB	0.05 "	1.27 mm	26	Tin	1.5 ft	457.2 mm	Board In	0.1 in	2.54 mm	2.54 µm	100 µin	IDC	Unshielded	Multiple Ribbon
CW Industries C3APS-2606G	Socket to PCB	0.05 "	1.27 mm	26	Tin			Board In	0.1 in	2.54 mm	2.54 µm	100 µin	IDC	Unshielded		152.4 mm	6 "	0.5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

26 Position Cable Assembly Rectangular Socket to PCB 3.00' (914.40mm)
