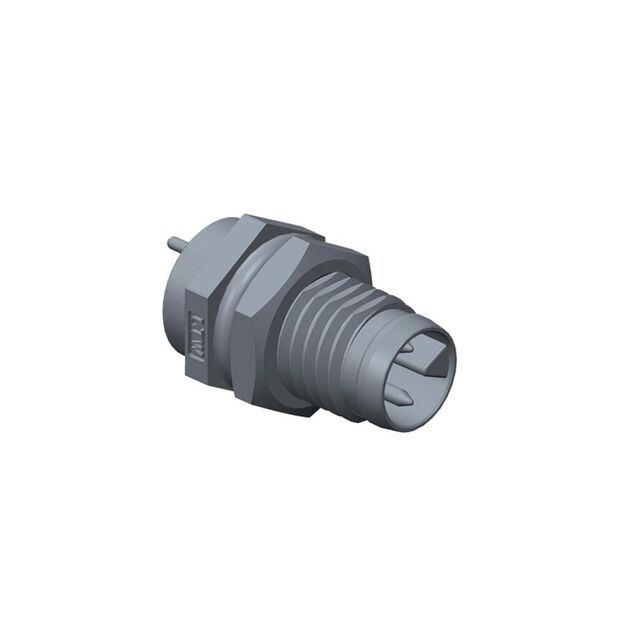

8A-02PMMP-SF7001

Active

Amphenol LTW

M SERIES, GUIDED M8, 3A, 02 PINS, RECEPTACLE, HEXAGONAL ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES, GUIDED M8, 3A, 02 PINS, RECEPTACLE, HEXAGONAL ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	8A-02PMMP-SF7001

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	3 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M8-2
Shielding	Shielded
Termination	Solder
Voltage Rating	60 VDC

Part	Connector Type	Number of Positions	Termination	Material Flammability Rating	Mounting Feature	Orientation	Voltage Rating	Ingress Protection	Shell Size - Insert	Mounting Type	Color	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Shell Material	Current Rating (Amps)	Primary Material	Shielding	Contact Material	Insert Material
Amphenol LTW 8A-02PMMP-SF7001	Male Pins Receptacle	2	Solder	UL94 V-0	Bulkhead - Front Side Nut	Keyed	60 VDC	IP67 - Dust Tight Waterproof	M8-2	Panel Mount Through Hole	Silver	Nickel	-40 °C	105 ░C	Gold	Zinc Alloy	3 A	Metal	Shielded	Copper Alloy	Polyamide (PA) Nylon Glass Filled

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Receptacle, Male Pins Solder
