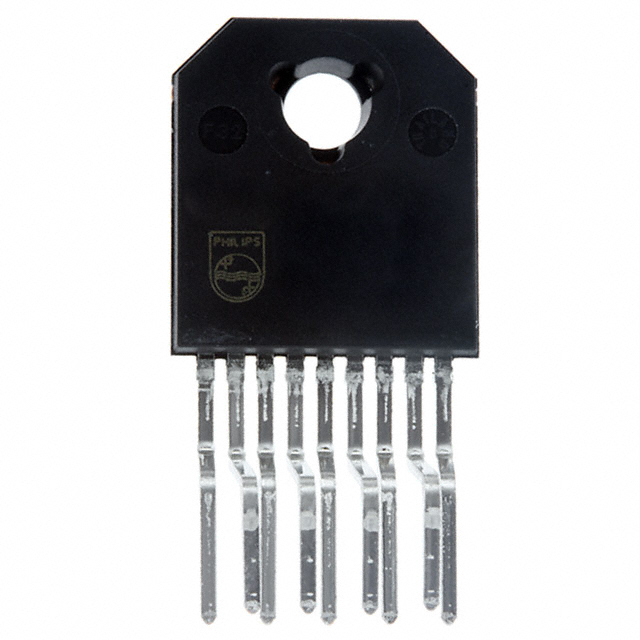

TFA9800J/N1,112

Obsolete

Freescale Semiconductor - NXP

IC AMP CLASS AB STEREO 7W 9PDBS

Search across all available documentation for this part.

Obsolete

Freescale Semiconductor - NXP

IC AMP CLASS AB STEREO 7W 9PDBS

Technical Specifications

Parameters and characteristics for this part

Specification	TFA9800J/N1,112

Features	Mute, Short-Circuit and Thermal Protection, Depop, Standby
Max Output Power x Channels @ Load	7 W
Max Output Power x Channels @ Load [custom]	2
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	2-Channel (Stereo)
Package / Case	9-SIP Exposed Tab, Formed Leads
Supplier Device Package	9-DBSP
Type	Class AB
Voltage - Supply [Max]	18 V
Voltage - Supply [Min]	6 V

Part	Features	Voltage - Supply [Max]	Voltage - Supply [Min]	Max Output Power x Channels @ Load [custom]	Max Output Power x Channels @ Load	Type	Mounting Type	Supplier Device Package	Output Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]
Freescale Semiconductor - NXP TFA9800J/N1,112	Depop Mute Short-Circuit and Thermal Protection Standby	18 V	6 V	2	7 W	Class AB	Through Hole	9-DBSP	2-Channel (Stereo)	9-SIP Exposed Tab Formed Leads	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Amplifier IC 2-Channel (Stereo) Class AB 9-DBSP
