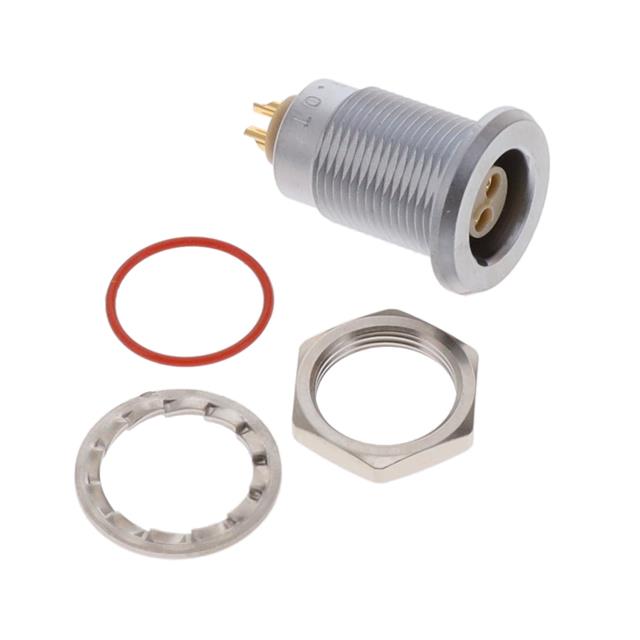

EGG.0T.302.CLL

Active

LEMO

CONN RCPT FMALE 2P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EGG.0T.302.CLL

Active

LEMO

CONN RCPT FMALE 2P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EGG.0T.302.CLL

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	10 A
Fastening Type	Push-Pull
Ingress Protection	IP66/IP68
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	2
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	302
Shielding	Shielded

EGG.0T Series

Part	Mounting Feature	Fastening Type	Number of Positions	Orientation	Contact Finish - Mating	Primary Material	Color	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size - Insert	Current Rating (Amps)	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Insert Material	Shell Material	Shielding	Connector Type	Shell Finish
LEMO EGG.0T.309.KLL	Bulkhead - Rear Side Nut	Push-Pull	9	G	Gold	Metal	Black	Bronze	1.5 Ám	59 Áin	309	2 A	UL94 V-0	200 °C	-55 °C	IP66/IP68	Polyetheretherketone (PEEK)	Brass	Shielded	Receptacle Female Sockets
LEMO EGG.0T.305.CLL	Bulkhead - Rear Side Nut	Push-Pull		G	Gold	Metal	Silver	Bronze	1.5 Ám	59 Áin	305	6.5 A	UL94 V-0	200 °C	-55 °C	IP66/IP68	Polyetheretherketone (PEEK)	Brass	Shielded	Receptacle Female Sockets	Chrome
LEMO EGG.0T.309.CLL	Bulkhead - Rear Side Nut	Push-Pull	9	G	Gold	Metal	Silver	Bronze	1.5 Ám	59 Áin	309	2 A	UL94 V-0	200 °C	-55 °C	IP66/IP68	Polyetheretherketone (PEEK)	Brass	Shielded	Receptacle Female Sockets	Chrome
LEMO EGG.0T.307.KLL	Bulkhead - Rear Side Nut	Push-Pull	7	G	Gold	Metal	Black	Bronze	1.5 Ám	59 Áin	307	2.5 A	UL94 V-0	200 °C	-55 °C	IP66/IP68	Polyetheretherketone (PEEK)	Brass	Shielded	Receptacle Female Sockets
LEMO EGG.0T.302.CLL	Bulkhead - Rear Side Nut	Push-Pull	2	G	Gold	Metal	Silver	Bronze	1.5 Ám	59 Áin	302	10 A	UL94 V-0	200 °C	-55 °C	IP66/IP68	Polyetheretherketone (PEEK)	Brass	Shielded	Receptacle Female Sockets	Chrome
LEMO EGG.0T.307.CLL	Bulkhead - Rear Side Nut	Push-Pull	7	G	Gold	Metal	Silver	Bronze	1.5 Ám	59 Áin	307	2.5 A	UL94 V-0	200 °C	-55 °C	IP66/IP68	Polyetheretherketone (PEEK)	Brass	Shielded	Receptacle Female Sockets	Chrome

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 22.16
		10	$ 19.41
		25	$ 18.57
		50	$ 17.97
		100	$ 17.37
		250	$ 16.41
		500	$ 15.93

Description

General part information

EGG.0T Series

2 Position Circular Connector Receptacle, Female Sockets Solder Cup
