C3EES-2606G
ActiveCW Industries
IDC CABLE - CCE26S/AE26G/CCE26S
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsRibbon Cable Assembly Length Guide
C3EES-2606G
ActiveCW Industries
IDC CABLE - CCE26S/AE26G/CCE26S
Deep-Dive with AI
DocumentsRibbon Cable Assembly Length Guide
Technical Specifications
Parameters and characteristics for this part
| Specification | C3EES-2606G |
|---|---|
| Cable Termination | IDC |
| Connector Type | Card Edge to Card Edge |
| Contact Finish | Tin |
| Contact Finish Thickness | 2.54 µm |
| Contact Finish Thickness | 100 µin |
| Length | 152.4 mm |
| Length | 6 " |
| Length | 0.5 ' |
| Number of Positions | 26 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.97 | |
| 10 | $ 10.74 | |||
| 25 | $ 9.71 | |||
| 50 | $ 9.01 | |||
| 100 | $ 8.38 | |||
| 250 | $ 7.63 | |||
| 500 | $ 7.13 | |||
| 1000 | $ 6.67 | |||
Description
General part information
C3EES-2 Series

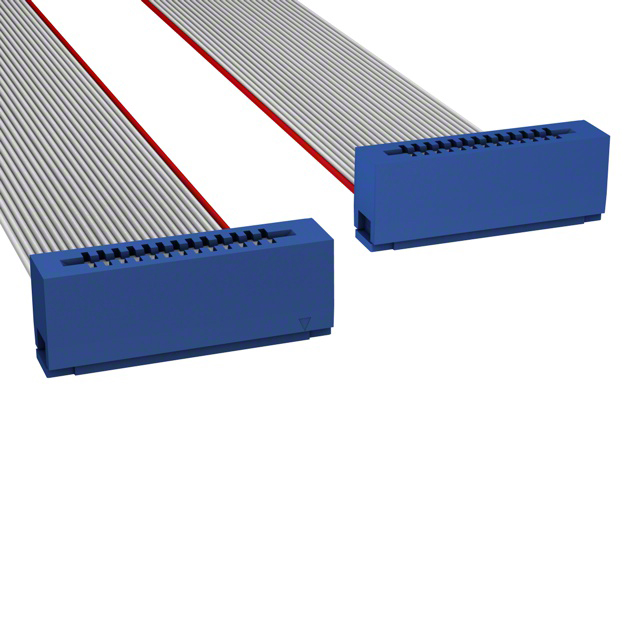

26 Position Cable Assembly Rectangular Card Edge to Card Edge 0.500' (152.40mm, 6.00")
