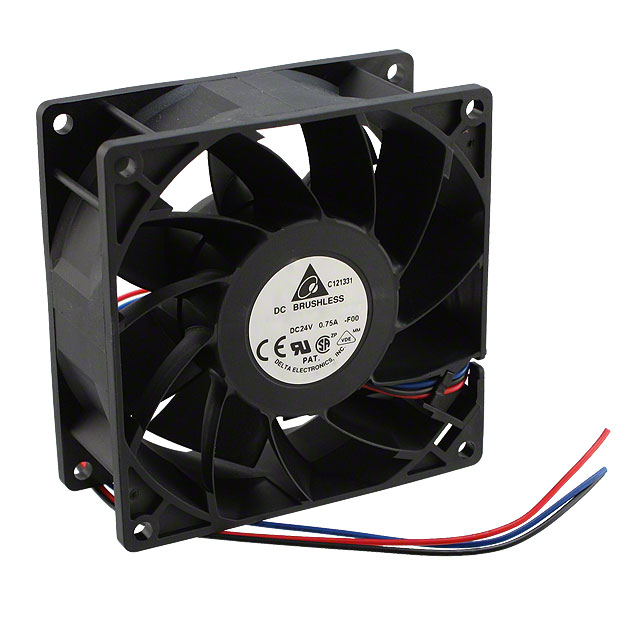

FFB0924EHE-F00
ActiveDelta Electronics
FAN AXIAL 92X38MM 24VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
FFB0924EHE-F00
ActiveDelta Electronics
FAN AXIAL 92X38MM 24VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FFB0924EHE-F00 |
|---|---|
| Air Flow | 3.09 m³/min |
| Air Flow | 110.2 CFM |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.5 A |
| Fan Type | Tubeaxial |
| Features | Speed Sensor (Tach), Locked Rotor Protection |
| Lifetime @ Temp. | 70000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 55 dB |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 12 W |
| RPM | 4800 RPM |
| Static Pressure | 165.6 Pa |
| Static Pressure | 0.665 in H2O |
| Termination | 3 Wire Leads |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 27.6 VDC |
| Voltage Range [Min] | 14 VDC |
| Weight | 198 g |
| Weight | 0.437 lb |
| Width [y] | 38 mm |
FFB0924 Series
| Part | Lifetime @ Temp. | Fan Type | Ingress Protection | Voltage Range [Max] | Voltage Range [Min] | Static Pressure | Static Pressure | Weight | Weight | Material - Frame | Air Flow | Air Flow | Noise | Bearing Type | Termination | Approval Agency | Material - Blade | Width [y] | Voltage - Rated | Current Rating (Amps) | Power (Watts) | RPM | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Max] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Delta Electronics | 70000 Hrs | Tubeaxial | IP55 - Dust Protected Water Resistant | 27.6 VDC | 14 VDC | 165.6 Pa | 0.665 in H2O | 198 g | 0.437 lb | Plastic | 3.09 m³/min | 110.2 CFM | 55 dB | Ball | 2 Wire Leads | CE CSA UL VDE | Plastic | 38 mm | 24 VDC | 0.5 A | 12 W | 4800 RPM | -10 °C | -10 °C | 60 °C | 60 °C | |
Delta Electronics | 70000 Hrs | Tubeaxial | 27.6 VDC | 14 VDC | 165.6 Pa | 0.665 in H2O | 198 g | 0.437 lb | Plastic | 3.09 m³/min | 110.2 CFM | 55 dB | Ball | 2 Wire Leads | CE CSA UL VDE | Plastic | 38 mm | 24 VDC | 0.5 A | 12 W | 4800 RPM | -10 °C | -10 °C | 60 °C | 60 °C | ||
Delta Electronics | 70000 Hrs | Tubeaxial | 27.6 VDC | 14 VDC | 79.5 Pa | 0.319 in H2O | 129.73 g | 0.286 lb | Plastic | 2.3 m³/min | 82 CFM | 48.2 dB(A) | Ball | 3 Wire Leads | CE CSA UL VDE | Plastic | 25.4 mm | 24 VDC | 0.31 A | 7.44 W | 3700 RPM | -10 °C | -10 °C | 60 °C | 60 °C | Locked Rotor Sensor | |
Delta Electronics | 70000 Hrs | Tubeaxial | 26.4 VDC | 21.6 VDC | 165.6 Pa | 0.665 in H2O | 198 g | 0.437 lb | Plastic | 3.09 m³/min | 110.2 CFM | 55 dB | Ball | 3 Wire Leads | CE CSA UL VDE | Plastic | 38 mm | 24 VDC | 0.5 A | 12 W | 4800 RPM | -10 °C | -10 °C | 70 °C | 70 °C | Locked Rotor Protection PWM Control | |
Delta Electronics | 70000 Hrs | Tubeaxial | 27.6 VDC | 14 VDC | 165.6 Pa | 0.665 in H2O | 198 g | 0.437 lb | Plastic | 3.09 m³/min | 110.2 CFM | 55 dB | Ball | 3 Wire Leads | CE CSA UL VDE | Plastic | 38 mm | 24 VDC | 0.5 A | 12 W | 4800 RPM | -10 °C | -10 °C | 60 °C | 60 °C | Locked Rotor Protection Speed Sensor (Tach) | |
Delta Electronics | 70000 Hrs | Tubeaxial | 27.6 VDC | 14 VDC | 142.5 Pa | 0.572 in H2O | 198 g | 0.437 lb | Plastic | 2.81 m³/min | 100.3 CFM | 52.5 dB(A) | Ball | 2 Wire Leads | CE CSA UL VDE | Plastic | 38 mm | 24 VDC | 400 mA | 9.6 W | 4400 RPM | -10 °C | -10 °C | 70 °C | 70 °C | ||
Delta Electronics | 70000 Hrs | Tubeaxial | IP55 - Dust Protected Water Resistant | 27.6 VDC | 14 VDC | 101.1 Pa | 0.406 in H2O | 198 g | 0.437 lb | Plastic | 2.39 mł/min | 85.5 CFM | 47.5 dB | Ball | 3 Wire Leads | CE cURus VDE | Plastic | 38 mm | 24 VDC | 0.28 A | 6.72 W | 3800 RPM | -10 °C | -10 °C | 70 °C | 70 °C | Locked Rotor Sensor |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.58 | |
| 10 | $ 18.69 | |||
| 48 | $ 16.91 | |||
| 96 | $ 15.57 | |||
| 144 | $ 13.97 | |||
| 288 | $ 12.90 | |||
| 528 | $ 12.01 | |||
Description
General part information
FFB0924 Series
Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Ball 110.2 CFM (3.09m³/min) 3 Wire Leads
