Technical Specifications
Parameters and characteristics for this part
| Specification | 8154000220 |
|---|---|
| Display Characters - Height [z] | 0.669 in |
| Display Characters - Height [z] | 17 mm |
| Display Type | LED - Red Characters |
| Features | Excitation Supply |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Measuring Range [Max] | 20 mA, 10 V, 1800 °C |
| Measuring Range [Min] | -270 °C, 0 A, 0 V |
| Measuring Type | RTD, Thermocouple, Process |
| Number of Characters Per Row | 5 |
| Output Type | Relay (2), Analog |
| Panel Cutout Dimensions [x] | 93 mm |
| Panel Cutout Dimensions [y] | 45.5 mm |
| Termination Style | Screw Terminal |
| Type | Temperature Meter, Process |
| Voltage - Supply [Max] | 240 VAC |
| Voltage - Supply [Min] | 100 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 128.00 | |
| 20 | $ 121.60 | |||
Description
General part information
815400 Series

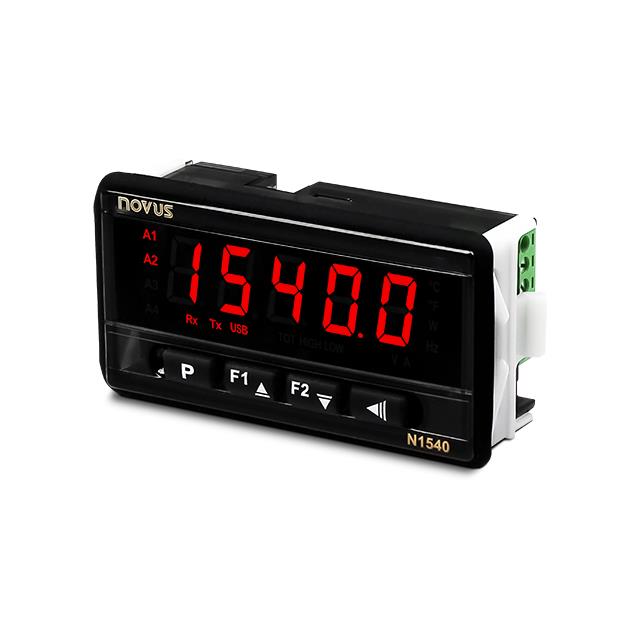

Process, Temperature Meter LED - Red Characters Display Panel Mount
