09151093001

Active

HARTING Technology Group

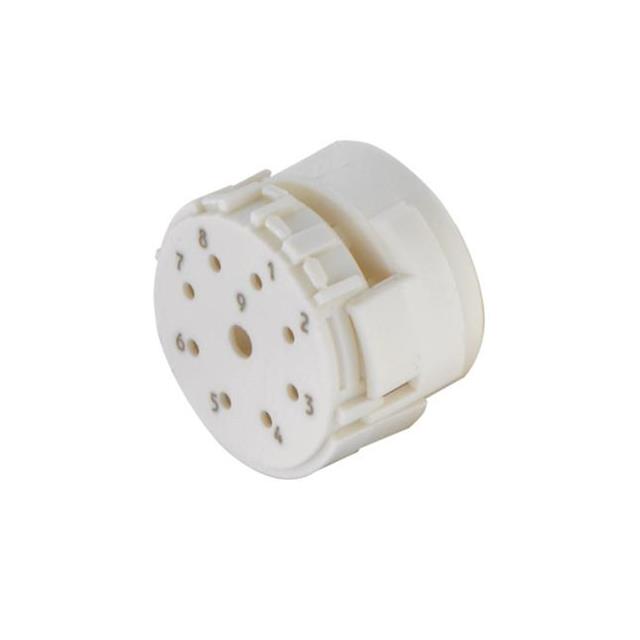

CONNECTOR: M23; CONTACT INSERT; PIN: 9(1+8); MALE; CRIMPED; 200V

Search across all available documentation for this part.

Active

HARTING Technology Group

CONNECTOR: M23; CONTACT INSERT; PIN: 9(1+8); MALE; CRIMPED; 200V

Technical Specifications

Parameters and characteristics for this part

Specification	09151093001

Contact Shape	Circular
Contact Size	1 mm, 2 mm
Contact Type	Crimp
Housing Color	White
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Note	Note: Contacts Not Included; Insert Only, Requires Shell
Number of Positions	9
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Size - Insert	M23-9
Shielding	Unshielded
Type	For Male Pins

Part	Number of Positions	Housing Color	Contact Size	Shell Size - Insert	Note	Contact Shape	Insert Material	Orientation	Material Flammability Rating	Contact Type	Type	Operating Temperature [Max]	Operating Temperature [Min]	Shielding
HARTING Technology Group 09151093001	9	White	1 mm 2 mm	M23-9	Note: Contacts Not Included; Insert Only Requires Shell	Circular	Nylon Polyamide (PA)	Keyed	UL94 V-0	Crimp	For Male Pins	125 °C	-40 °C	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position Circular Connector Insert
