G3T29AH-R

Active

NKK Switches

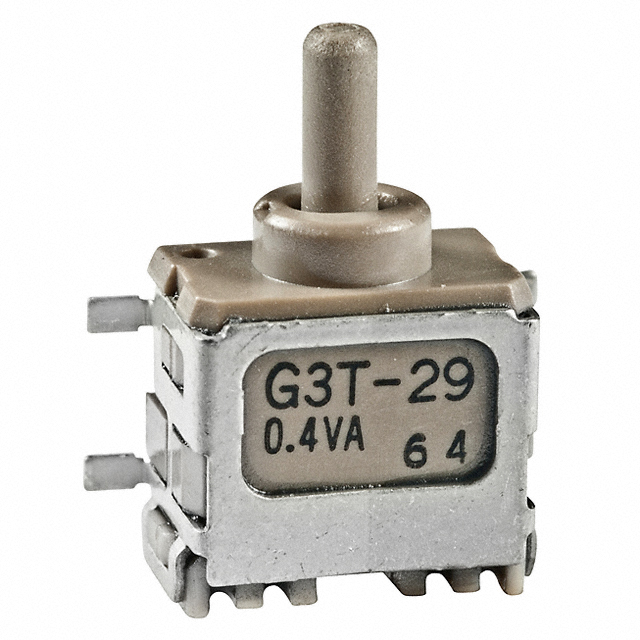

TOGGLE SWITCH, DPDT, ON-OFF-(ON), SOLDER TERMINAL, TOGGLE ACTUATOR, SURFACE MOUNT-RIGHT ANGLE,

Search across all available documentation for this part.

Active

NKK Switches

TOGGLE SWITCH, DPDT, ON-OFF-(ON), SOLDER TERMINAL, TOGGLE ACTUATOR, SURFACE MOUNT-RIGHT ANGLE,

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating - AC	Actuator Type	Actuator Material	Bushing Thread	Operating Temperature [Min]	Operating Temperature [Max]	Features	Actuator Length [x]	Termination Style	Switch Function	Mounting Type	Circuit	Voltage Rating - DC	Illumination	Electrical Life	Current Rating (Amps)
NKK Switches G3T29AB-S	28 V	Standard Round	Polyphenylene Sulfide (PPS)	Unthreaded	-30 ░C	85 °C	Process Sealed	3.81 mm	Gull Wing	On-Off-Mom	Surface Mount	DPDT	28 V	Non-Illuminated	50000 Cycles	0.4 VA
NKK Switches G3T29AP	28 V	Standard Round	Polyphenylene Sulfide (PPS)	Unthreaded	-30 ░C	85 °C	Process Sealed	3.81 mm	Gull Wing	On-Off-Mom	Surface Mount	DPDT	28 V	Non-Illuminated	50000 Cycles	0.4 VA
NKK Switches G3T29AH-R	28 V	Standard Round	Polyphenylene Sulfide (PPS)	Unthreaded	-30 ░C	85 °C	Process Sealed	3.81 mm	Gull Wing	On-Off-Mom	Surface Mount Right Angle	DPDT	28 V	Non-Illuminated	50000 Cycles	0.4 VA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	500	$ 6.71
Newark	Each	250	$ 9.69

General part information

Toggle Switch DPDT Surface Mount, Right Angle
