MP5403GQBU-P
NRNDMONOLITHIC POWER SYSTEMS (MPS)
IC REG BCK ADJ/FIX 3.5A/2.5A DL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MP5403GQBU-P
NRNDMONOLITHIC POWER SYSTEMS (MPS)
IC REG BCK ADJ/FIX 3.5A/2.5A DL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MP5403GQBU-P |
|---|---|
| Current - Output | 3.5 A, 2.5 A |
| Frequency - Switching | 1.5 MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable (Fixed) |

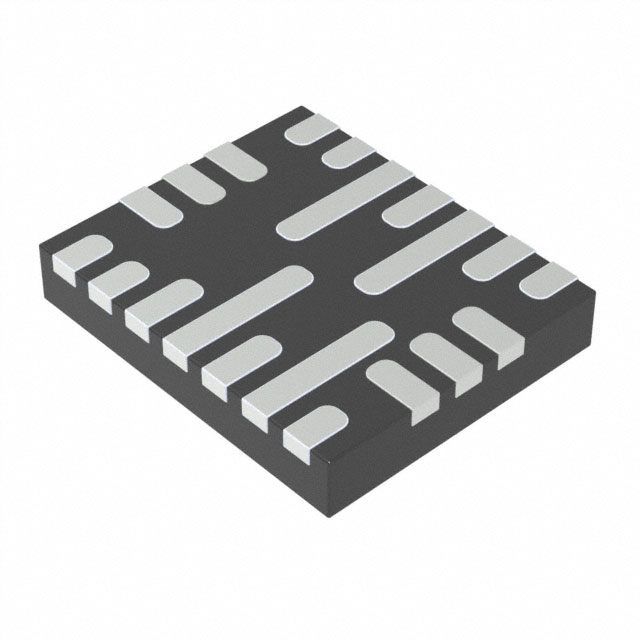

| Package / Case | 20-UFQFN |
| Supplier Device Package | 20-UTQFN (2.5x3) |
| Synchronous Rectifier | False |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 6 V |
| Voltage - Input (Min) [Min] | 2.7 V |
| Voltage - Output (Min/Fixed) | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 500 | $ 2.13 | |
| 1000 | $ 1.80 | |||
| 2500 | $ 1.71 | |||
| 5000 | $ 1.64 | |||
Description
General part information
MP5403 Series
Buck Switching Regulator IC Positive Adjustable (Fixed) 0.6V 2 Output 3.5A, 2.5A 20-UFQFN
