TSA-P-800MA
ActiveOptiFuse
FUSE GLASS 800MA 250VAC 3AB 3AG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TSA-P-800MA
ActiveOptiFuse
FUSE GLASS 800MA 250VAC 3AB 3AG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TSA-P-800MA |
|---|---|
| Approval Agency | UL 248 |
| Breaking Capacity @ Rated Voltage | 100 A |
| Current Rating (Amps) | 800 mA |
| Melting I˛t | 1.542 |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 3AG, 3AB |
| Package / Case [x] | 1/4 |
| Package / Case [y] | 1-1/4 |
| Response Time | Slow Blow |
| Size / Dimension [diameter] | 6.85 mm |
| Size / Dimension [diameter] | 0.27 in |
| Size / Dimension [x] | 32.4 mm |
| Size / Dimension [x] | 1.276 in |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.75 | |
| 10 | $ 1.69 | |||
| 25 | $ 1.65 | |||
| 50 | $ 1.39 | |||
| 100 | $ 1.14 | |||
| 250 | $ 1.03 | |||
| 500 | $ 0.86 | |||
| 1000 | $ 0.75 | |||
Description
General part information
TSA-P Series

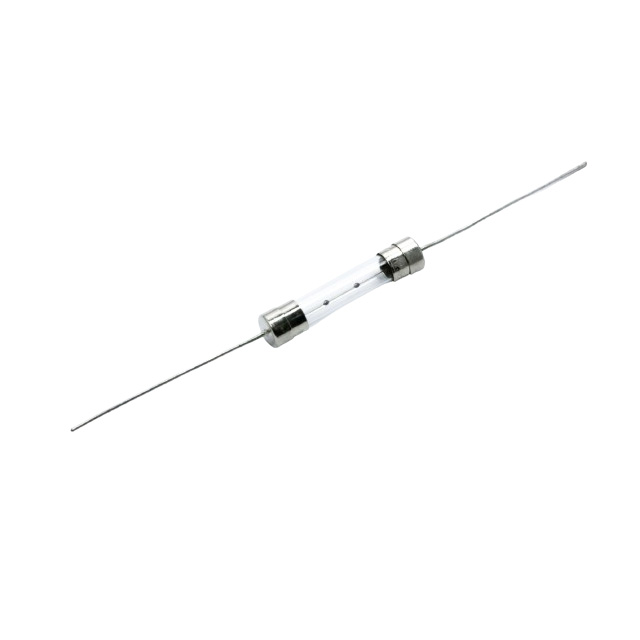

800 mA 250 V AC DC Fuse Cartridge, Glass Through Hole 3AB, 3AG, 1/4" x 1-1/4" (Axial)
