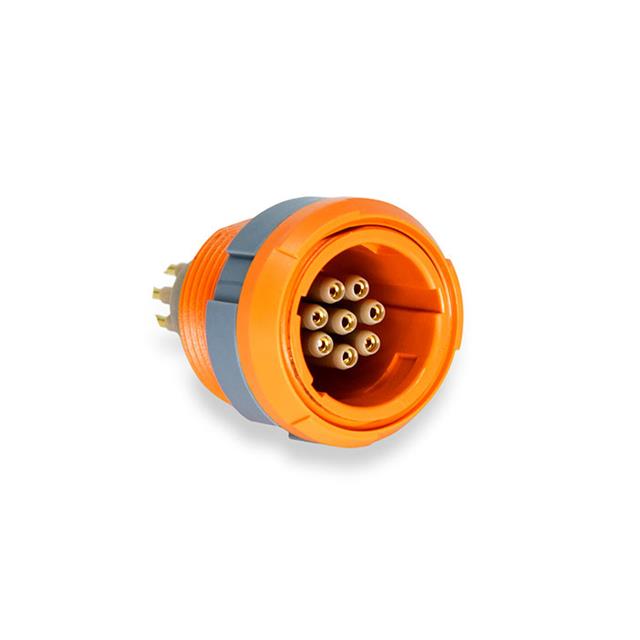

CKB.H08.ELLS

Active

LEMO

PANEL RECEPTACLE 8 POS

Search across all available documentation for this part.

Active

LEMO

PANEL RECEPTACLE 8 POS

Technical Specifications

Parameters and characteristics for this part

Specification	CKB.H08.ELLS

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Current Rating (Amps)	6.5 A
Fastening Type	Detent Lock, Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	8
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-50 °C
Orientation	B
Shell Material	Polysulfone (PSU)
Shell Size - Insert	H-8
Shielding	Unshielded
Voltage Rating	250 VDC

Part	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Voltage Rating	Number of Positions	Current Rating (Amps)	Applications	Contact Finish - Mating	Shell Material	Connector Type	Orientation	Insert Material	Fastening Type	Shell Size - Insert	Ingress Protection	Shielding
LEMO CKB.H08.ELLS	Bulkhead - Rear Side Nut	150 °C	-50 °C	UL94 V-0	250 VDC	8	6.5 A	Automotive Industrial Medical Testing Equipment & Measurement	Gold	Polysulfone (PSU)	Receptacle Female Sockets	B	Polyetheretherketone (PEEK)	Detent Lock Push-Pull	H-8	IP50	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Receptacle, Female Sockets Solder Cup
