Q-030480003084i

Active

Amphenol Custom Cable

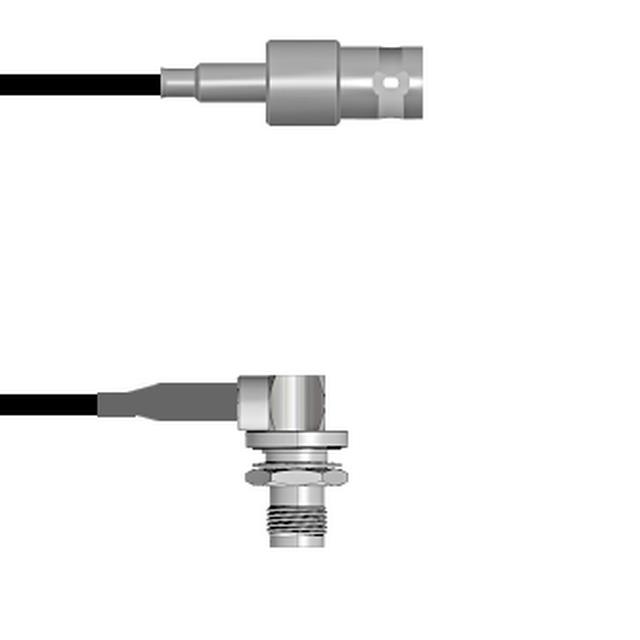

COAX CABLE BNC TO TNC 7'

Deep-Dive with AI

Search across all available documentation for this part.

Q-030480003084i

Active

Amphenol Custom Cable

COAX CABLE BNC TO TNC 7'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-030480003084i

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	TNC Jack, Right Angle
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	84 in
Length	2.1 m
Length	7 ft
Overall Impedance	50 Ohms
Style	BNC to TNC

Q-030480 Series

Part	Features	2nd Contact Gender	Cable Type	2nd Connector Mounting Feature	2nd Connector	2nd Connector Mounting Type	Frequency - Max [Max]	Color	1st Connector	1st Connector Mounting Type	Overall Impedance	Length	Length	Style	1st Contact Gender	Length	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-030480003.75M	Shielded	Female	RG-174	Bulkhead - Front Side Nut	TNC Jack Right Angle	Panel Mount	4 GHz	Black	BNC Jack	Free Hanging (In-Line)	50 Ohms	29.53 "	750 mm	BNC to TNC	Female
Amphenol Custom Cable Q-030480005.75M	Shielded	Female	RG-316	Bulkhead - Front Side Nut	TNC Jack Right Angle	Panel Mount	4 GHz	Copper	BNC Jack	Free Hanging (In-Line)	50 Ohms	29.53 "	750 mm	BNC to TNC	Female
Amphenol Custom Cable Q-030480003001M	Shielded	Female	RG-174	Bulkhead - Front Side Nut	TNC Jack Right Angle	Panel Mount	4 GHz	Black	BNC Jack	Free Hanging (In-Line)	50 Ohms	39.4 in	1 m	BNC to TNC	Female	3.3 ft
Amphenol Custom Cable Q-030480003036i	Shielded	Female	RG-174	Bulkhead - Front Side Nut	TNC Jack Right Angle	Panel Mount	4 GHz	Black	BNC Jack	Free Hanging (In-Line)	50 Ohms	36 in	91.44 cm	BNC to TNC	Female
Amphenol Custom Cable Q-030480003084i	Shielded	Female	RG-174	Bulkhead - Front Side Nut	TNC Jack Right Angle	Panel Mount	4 GHz	Black	BNC Jack	Free Hanging (In-Line)	50 Ohms	84 in	2.1 m	BNC to TNC	Female	7 ft
Amphenol Custom Cable Q-030480005018i	Shielded	Female	RG-316	Bulkhead - Front Side Nut	TNC Jack Right Angle	Panel Mount	4 GHz	Copper	BNC Jack	Free Hanging (In-Line)	50 Ohms			BNC to TNC	Female		457.2 mm	457.2 mm
Amphenol Custom Cable Q-030480003012i	Shielded	Female	RG-174	Bulkhead - Front Side Nut	TNC Jack Right Angle	Panel Mount	4 GHz	Black	BNC Jack	Free Hanging (In-Line)	50 Ohms	12 "	304.8 mm	BNC to TNC	Female
Amphenol Custom Cable Q-030480003.25M	Shielded	Female	RG-174	Bulkhead - Front Side Nut	TNC Jack Right Angle	Panel Mount	4 GHz	Black	BNC Jack	Free Hanging (In-Line)	50 Ohms			BNC to TNC	Female			250 mm	9.843 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 82.91
		25	$ 81.32
		50	$ 79.72
		100	$ 78.13
		250	$ 76.53

Description

General part information

Q-030480 Series

Cable Assembly Coaxial BNC to TNC RG-174 84.0" (2.1m) 7.0'

Documents

Technical documentation and resources

No documents available
