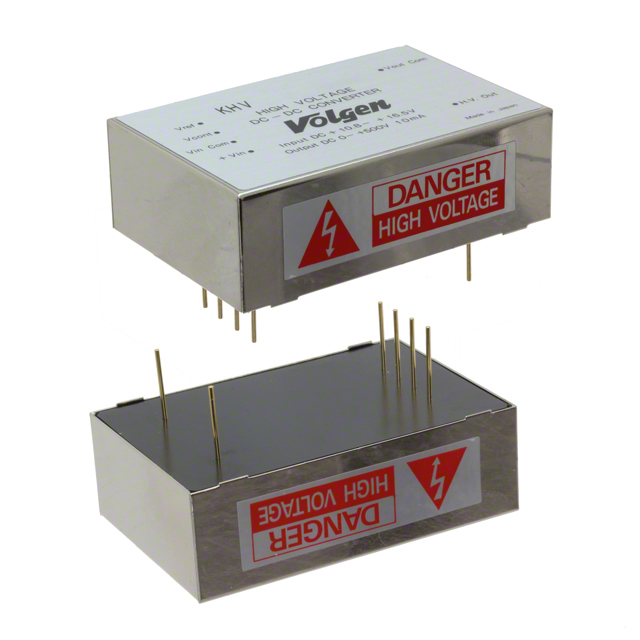

KHV12-0.5K10000N

Active

Volgen + Furuno

DC DC CONVERTER -500V 5W

Search across all available documentation for this part.

Active

Volgen + Furuno

DC DC CONVERTER -500V 5W

Technical Specifications

Parameters and characteristics for this part

Specification	KHV12-0.5K10000N

Applications	ITE (Commercial)
Current - Output (Max) [Max]	10 mA
Features	OCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Package / Case	7-DIP Module
Power (Watts)	5 W
Size / Dimension [x]	60 mm
Size / Dimension [x]	2.36 in
Size / Dimension [y]	1.57 "
Size / Dimension [y]	40 mm
Size / Dimension [z]	0.79 in
Size / Dimension [z]	20 mm
Type	High Voltage - Non-Isolated Module
Voltage - Input (Max) [Max]	16.5 V
Voltage - Input (Min) [Min]	10.8 V
Voltage - Output 1	-500 V

Part	Power (Watts)	Package / Case	Mounting Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Applications	Current - Output (Max) [Max]	Type	Number of Outputs	Voltage - Output 1	Voltage - Input (Max) [Max]	Features	Voltage - Input (Min) [Min]
Volgen + Furuno KHV12-0.5K10000N	5 W	7-DIP Module	Through Hole	0.79 in	1.57 "	20 mm	60 mm	2.36 in	40 mm	-10 °C	50 °C	ITE (Commercial)	10 mA	High Voltage - Non-Isolated Module	1	-500 V	16.5 V	OCP	10.8 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 253.96

General part information

High Voltage - Non-Isolated Module DC DC Converter 1 Output -500V 10mA 10.8V - 16.5V Input
