30-251 BLK
ActiveGrayhill Inc.

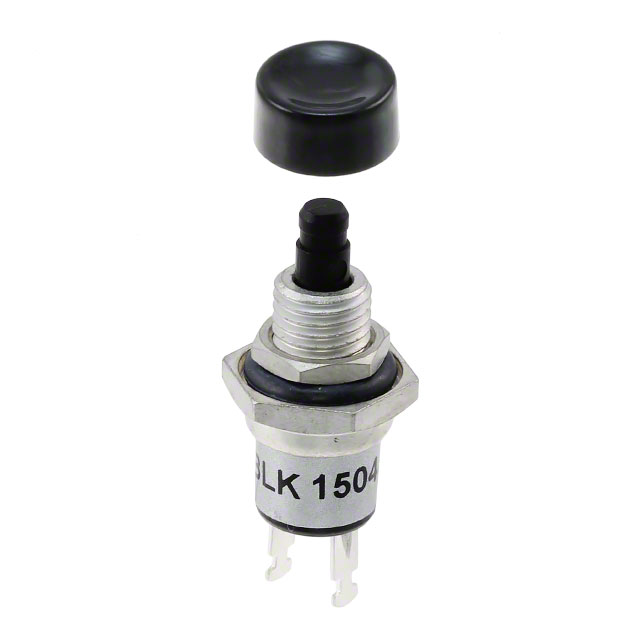

INDUSTRIAL PUSHBUTTON SWITCH, 30 SERIES, 6.8 MM, SPST-NO, OFF-(ON), ROUND, BLACK
Deep-Dive with AI
Search across all available documentation for this part.
30-251 BLK
ActiveGrayhill Inc.
INDUSTRIAL PUSHBUTTON SWITCH, 30 SERIES, 6.8 MM, SPST-NO, OFF-(ON), ROUND, BLACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 30-251 BLK |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 1 A |
| Electrical Life | 250000 Cycles |
| Features | Sealed - Fully |
| Mounting Type | Panel Mount, Rear |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Panel Cutout Dimensions [diameter] | 6.75 mm |
| Switch Function | Off-Mom |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 115 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
30-251 Series
The 30 series 1 and 5A SPST butt contact Pushbutton Switch made of thermoplastic base with gold over nickel plated brass terminals for 30-601 and commercial brass with fine-silver contact surface and silver plated for all others.
