C3AEG-3436M
ActiveCW Industries
IDC CABLE - CSC34G/AE34M/CCE34G
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C3AEG-3436M
ActiveCW Industries
IDC CABLE - CSC34G/AE34M/CCE34G
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C3AEG-3436M |
|---|---|
| Cable Termination | IDC |
| Color | Ribbon, Multiple |
| Connector Type | Socket to Card Edge |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Length [x] | 3 ft |
| Length [x] | 914.4 mm |
| Number of Positions | 34 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 24.90 | |
| 10 | $ 19.20 | |||
| 25 | $ 17.38 | |||
| 50 | $ 16.16 | |||
| 100 | $ 15.05 | |||
| 250 | $ 13.74 | |||
| 500 | $ 12.86 | |||
Description
General part information
C3AEG-3 Series

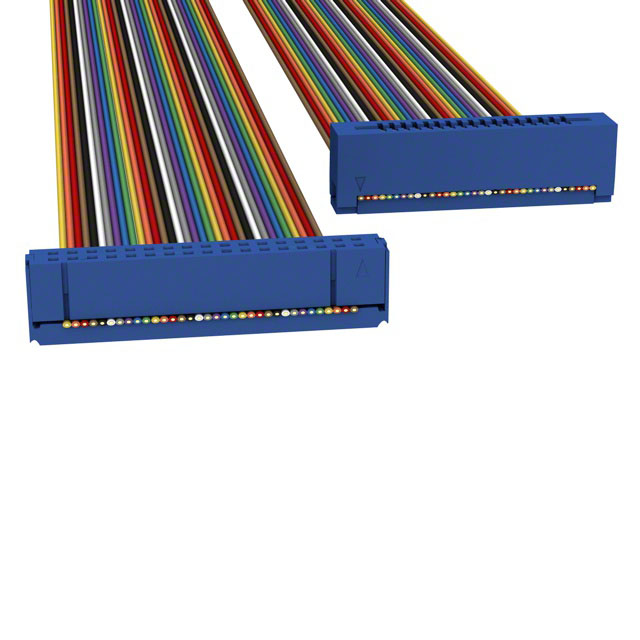

34 Position Cable Assembly Rectangular Socket to Card Edge 3.00' (914.40mm)
