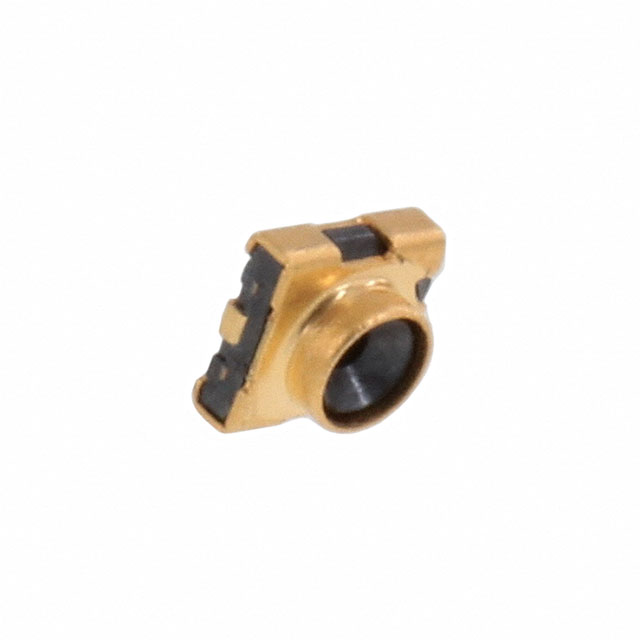

902-9040
ActiveAmphenol RF
CONN COAX SWITCH JACK STR 50 OHM
Deep-Dive with AI
Search across all available documentation for this part.
902-9040
ActiveAmphenol RF
CONN COAX SWITCH JACK STR 50 OHM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 902-9040 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | Coaxial Switch - Plug Dia |
| Connector Style [diameter] | 4.3 mm |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Fastening Type | Snap-On |
| Features | Internal Switch |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Insertion Loss | 0.2 dB |
| Mating Cycles | 500 |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.97 | |
| 10 | $ 2.70 | |||
| 25 | $ 2.56 | |||
| 50 | $ 2.50 | |||
| 100 | $ 2.38 | |||
| 250 | $ 2.08 | |||
| 500 | $ 2.02 | |||
| 1000 | $ 1.72 | |||
| Digi-Reel® | 1 | $ 2.97 | ||
| 10 | $ 2.70 | |||
| 25 | $ 2.56 | |||
| 50 | $ 2.50 | |||
| 100 | $ 2.38 | |||
| 250 | $ 2.08 | |||
| 500 | $ 2.02 | |||
| 1000 | $ 1.72 | |||
| Tape & Reel (TR) | 3000 | $ 1.61 | ||
| 6000 | $ 1.55 | |||
Description
General part information
902-90 Series
Coaxial Switch - 4.30mm Plug Dia Connector Jack, Female Socket 50 Ohms Surface Mount Solder
