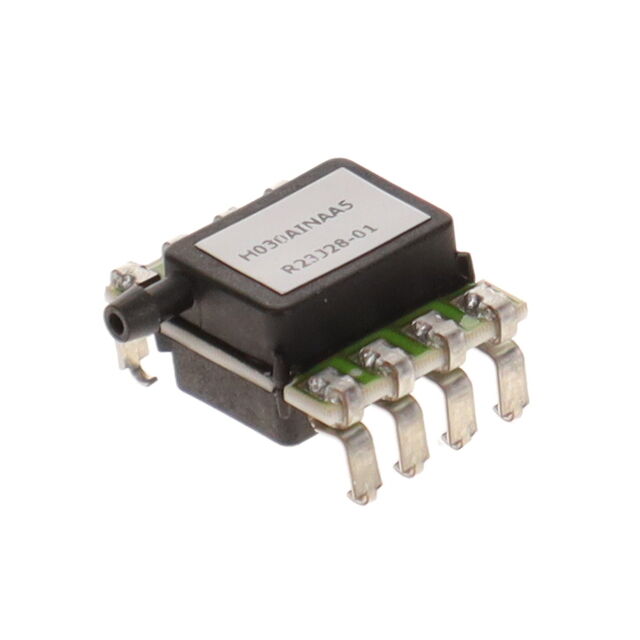

ELVH-030A-HRNJ-I-NAA5

Active

Amphenol All Sensors Corporation

SENSOR 30.02PSIA 0.06"

Search across all available documentation for this part.

Active

Amphenol All Sensors Corporation

SENSOR 30.02PSIA 0.06"

Technical Specifications

Parameters and characteristics for this part

Part	Operating Pressure	Operating Pressure	Port Style	Maximum Pressure [Max]	Maximum Pressure [Max]	Accuracy	Mounting Type	Output Type	Port Size	Port Size	Features	Termination Style	Package / Case	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Port Size	Operating Temperature [Max]	Operating Temperature [Min]
Amphenol All Sensors Corporation ELVH-030A-HAND-C-NAA5	206.84 kPa	30 PSI	Barbed	414 kPa	60.05 PSI	0.25 %	Through Hole	Analog Voltage	4.93 mm	0.19 "	Temperature Compensated	PC Pin	0.524 " 13.3 mm	8-DIP	2.7 V	5.5 V
Amphenol All Sensors Corporation ELVH-030A-HRND-C-NAA5	206.84 kPa	30 PSI	Barbed	414 kPa	60.05 PSI	0.25 %	Through Hole	Analog Voltage	1.6 mm	0.06 "	Temperature Compensated	PC Pin	0.524 " 13.3 mm	8-DIP	2.7 V	5.5 V	Male
Amphenol All Sensors Corporation ELVH-030A-HRNJ-I-NAA5	206.84 kPa	30 PSI	Barbed	414 kPa	60.05 PSI	0.25 %	Surface Mount	Analog Voltage	1.6 mm	0.06 "	Temperature Compensated	J Lead		8-SMD J-Lead Side Port	2.7 V	5.5 V	Male	85 °C	-20 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor 30PSI (206.84kPa) Absolute Male - 0.06" (1.6mm) Tube 8-SMD, J-Lead, Side Port
