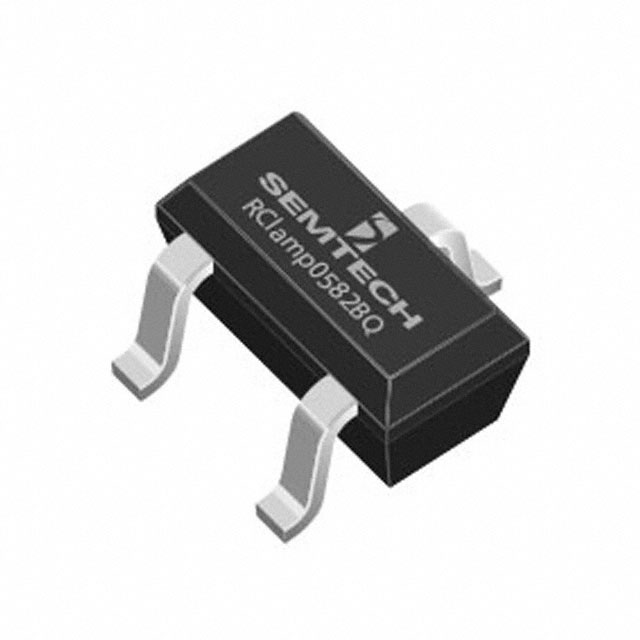

RCLAMP0582BQTCT

Active

Semtech Corporation

ESD SUPPRESSOR TVS UNI-DIR/BI-DIR 5V 3-PIN SOT-523 T/R AUTOMOTIVE AEC-Q100

Search across all available documentation for this part.

Active

Semtech Corporation

ESD SUPPRESSOR TVS UNI-DIR/BI-DIR 5V 3-PIN SOT-523 T/R AUTOMOTIVE AEC-Q100

Technical Specifications

Parameters and characteristics for this part

Specification	RCLAMP0582BQTCT

Capacitance @ Frequency	1.2 pF
Current - Peak Pulse (10/1000µs)	15 A
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature [custom]	-40 °C, 105 °C
Package / Case	SC-75, SOT-416
Power - Peak Pulse	300 W
Power Line Protection	False
Qualification	AEC-Q100
Supplier Device Package	SC-75 (SOT523)
Type	Zener
Unidirectional Channels	2
Voltage - Breakdown (Min) [Min]	6 V
Voltage - Clamping (Max) @ Ipp [Max]	20 V
Voltage - Reverse Standoff (Typ)	5 V

Part	Current - Peak Pulse (10/1000µs)	Type	Operating Temperature [custom]	Package / Case	Mounting Type	Supplier Device Package	Voltage - Clamping (Max) @ Ipp [Max]	Power - Peak Pulse	Unidirectional Channels	Voltage - Breakdown (Min) [Min]	Capacitance @ Frequency	Applications	Power Line Protection	Voltage - Reverse Standoff (Typ)	Grade	Qualification
Semtech Corporation RCLAMP0582B.TCT	15 A	Zener	-40 °C 105 °C	SC-75 SOT-416	Surface Mount	SC-75 (SOT523)	20 V	300 W	2	6 V	1.2 pF	General Purpose		5 V
Semtech Corporation RCLAMP0582BQTCT	15 A	Zener	-40 °C 105 °C	SC-75 SOT-416	Surface Mount	SC-75 (SOT523)	20 V	300 W	2	6 V	1.2 pF			5 V	Automotive	AEC-Q100

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20V Clamp 15A (8/20µs) Ipp Tvs Diode Surface Mount SC-75 (SOT523)
