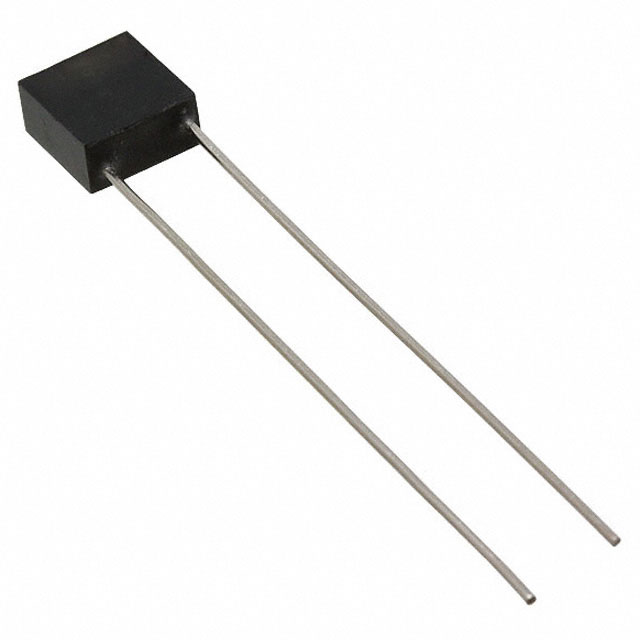

VRR40M104KGS

Active

KEMET

CAP, 0.1UF, 1KV, MLCC, RADIAL ROHS COMPLIANT: NO

Search across all available documentation for this part.

Active

KEMET

CAP, 0.1UF, 1KV, MLCC, RADIAL ROHS COMPLIANT: NO

Technical Specifications

Parameters and characteristics for this part

Specification	VRR40M104KGS

Applications	General Purpose
Capacitance	100000 pF
Features	High Voltage, High Temperature
Height - Seated (Max) [Max] [z]	0.4 in
Height - Seated (Max) [Max] [z]	10.16 mm
Lead Spacing	6.35 mm
Lead Spacing	0.25 in
Lead Style	Straight
Mounting Type	Through Hole
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	0.35 in
Size / Dimension [x]	8.89 mm
Size / Dimension [y]	6.98 mm
Size / Dimension [y]	0.275 in
Temperature Coefficient	X7R
Tolerance	10 %
Voltage - Rated	1 kV
Voltage - Rated	1000 V

Part	Applications	Features	Lead Style	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Tolerance	Capacitance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Lead Spacing	Lead Spacing	Voltage - Rated	Voltage - Rated	Temperature Coefficient	Operating Temperature [Min]	Operating Temperature [Max]
KEMET VRR40M104KGS	General Purpose	High Temperature High Voltage	Straight	0.4 in	10.16 mm	Radial	10 %	100000 pF	6.98 mm	0.35 in	8.89 mm	0.275 in	Through Hole	6.35 mm	0.25 in	1 kV	1000 V	X7R	-55 °C	200 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.1 µF ±10% 1000V (1kV) Ceramic Capacitor X7R Radial
